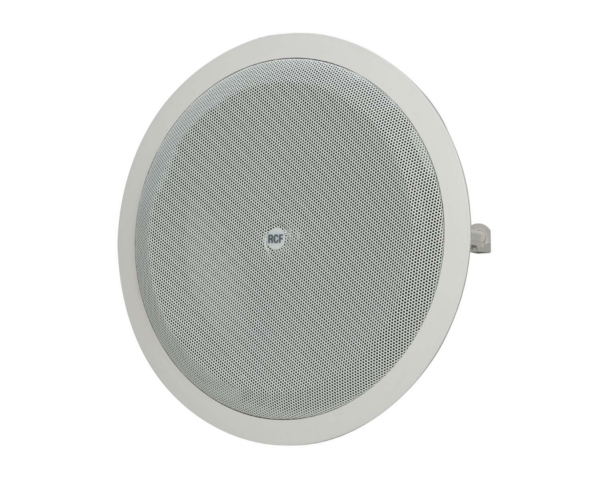

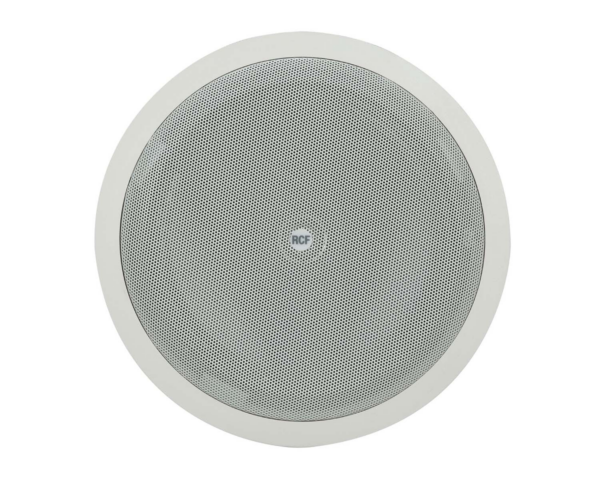

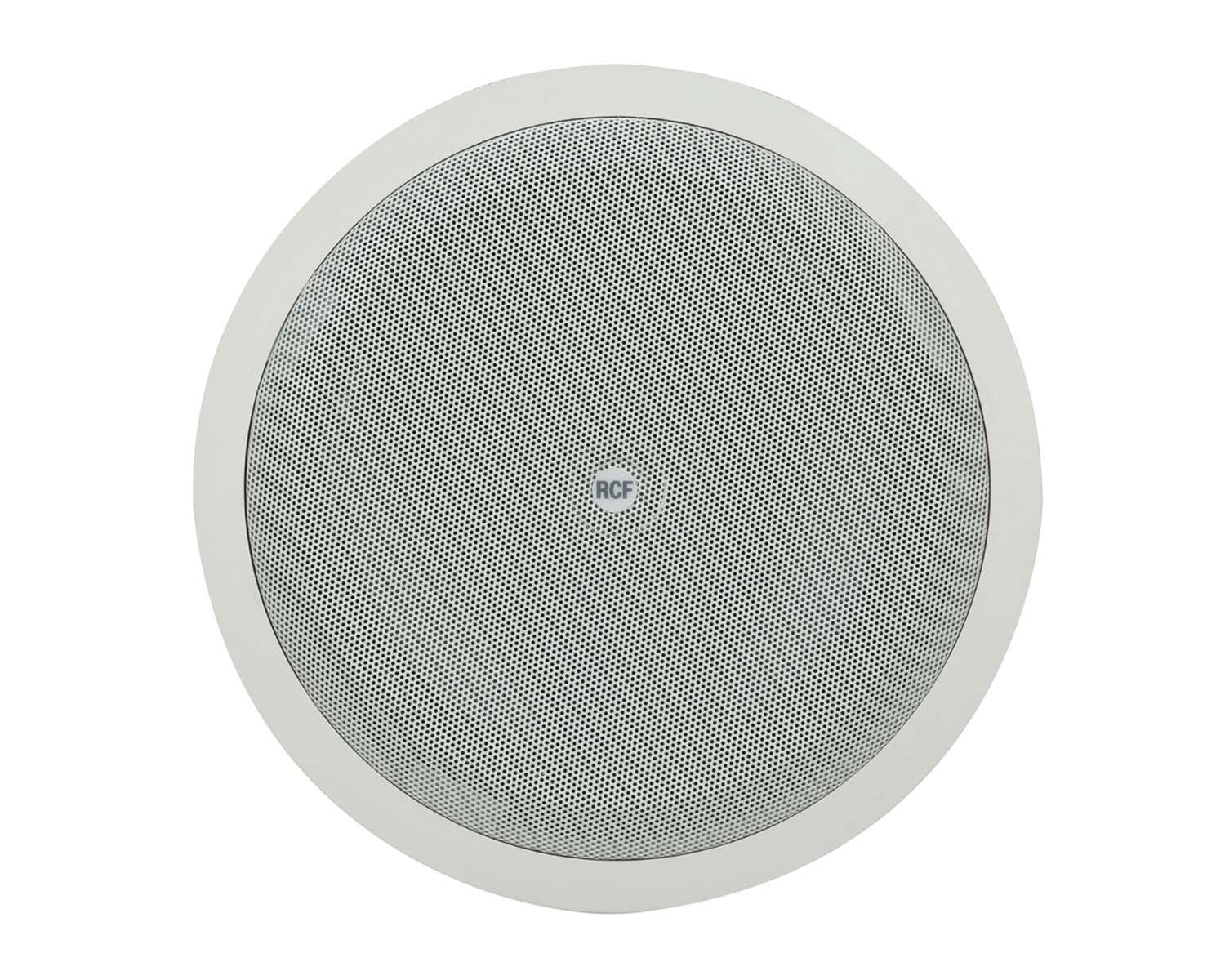

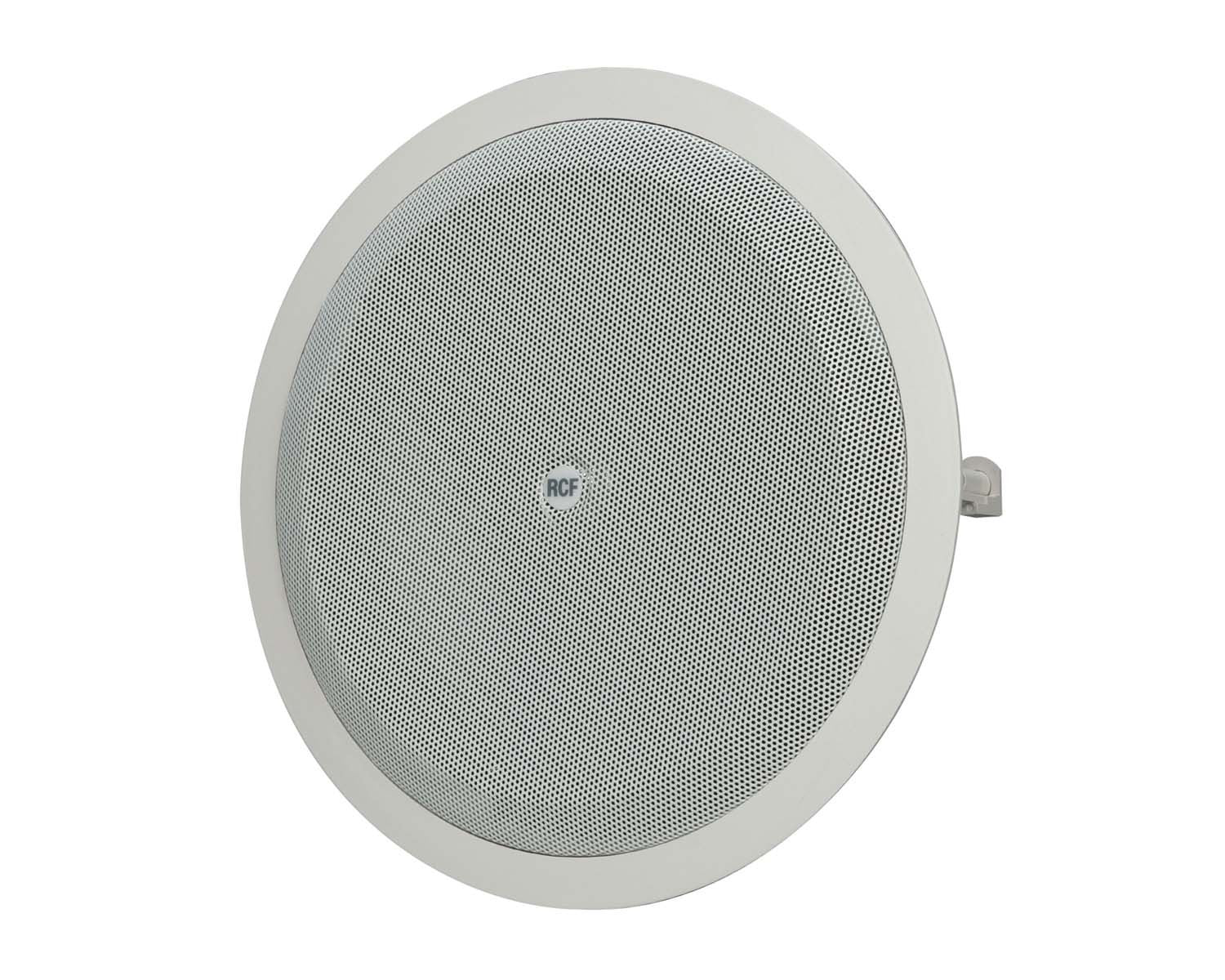

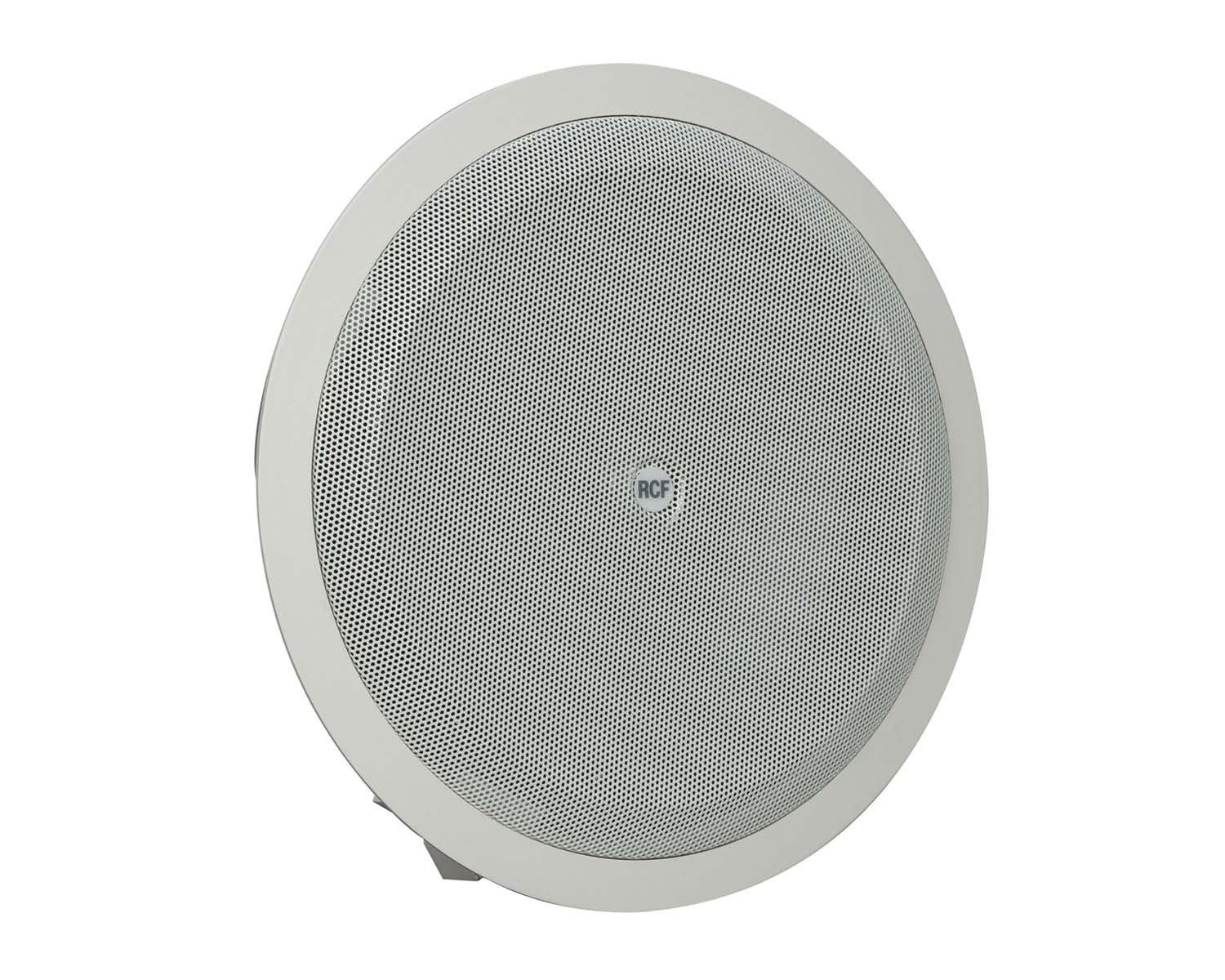

The PL8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 200 mm (8”) loudspeaker.

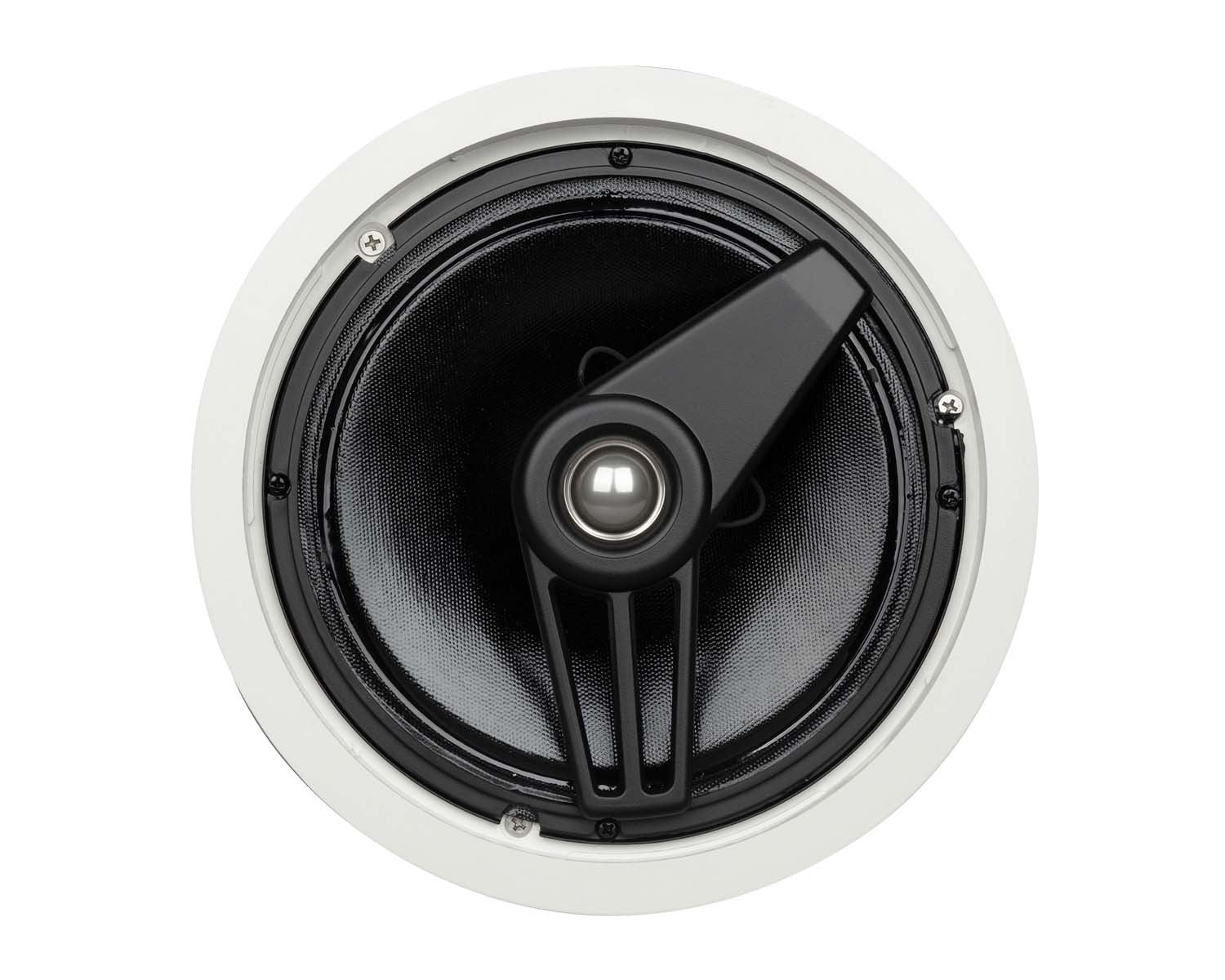

Both have a coaxial 25 mm (1”) tweeter placed on a bridge support. The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V.

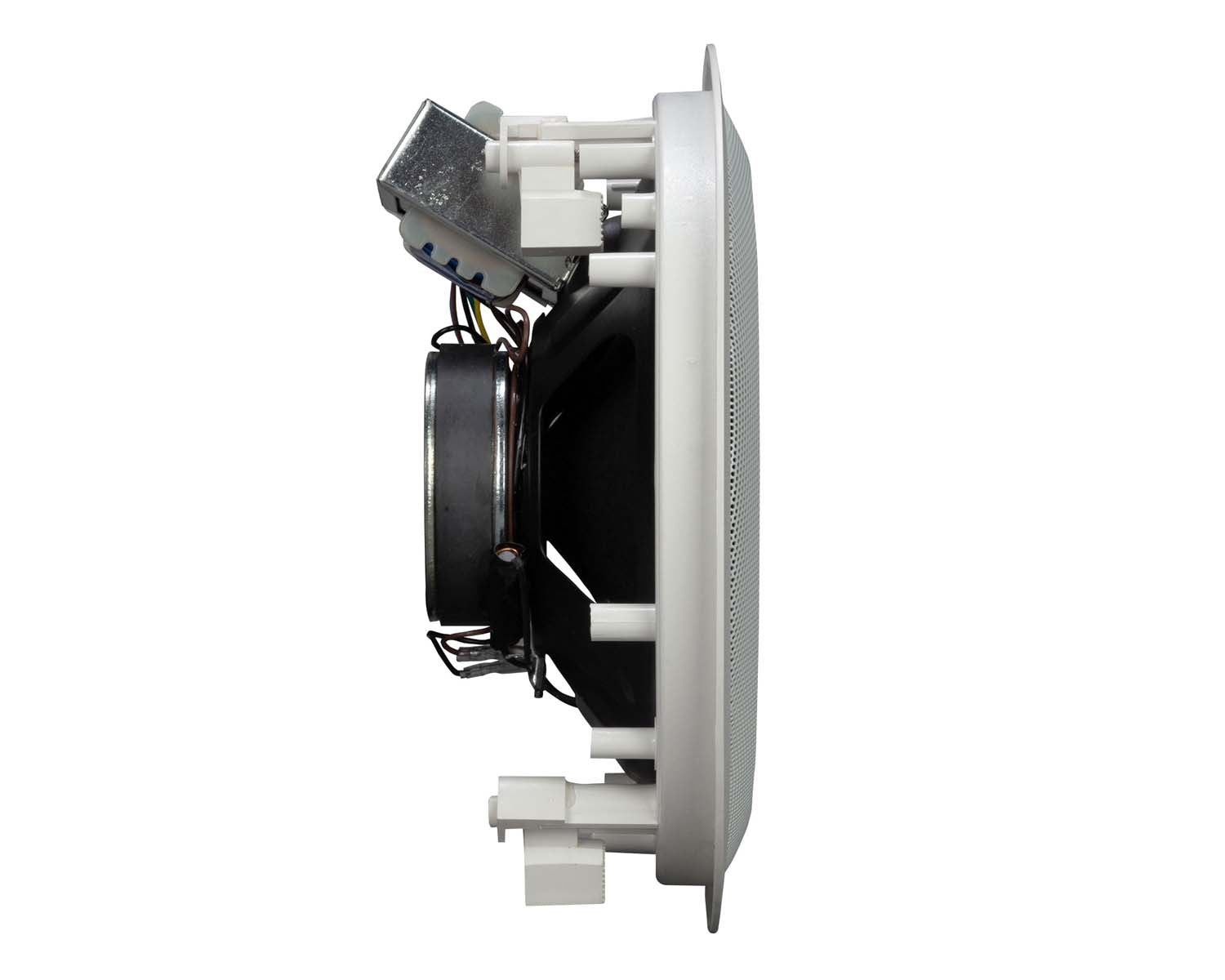

The multiple sockets on the transformer make it possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Two way speaker system with dome tweeter recommended for hi level speech and background-music reproduction
Music power/RMS: 40/20W
8″ woofer with coaxial tweeter
Low impedance (8Ω) or 100V

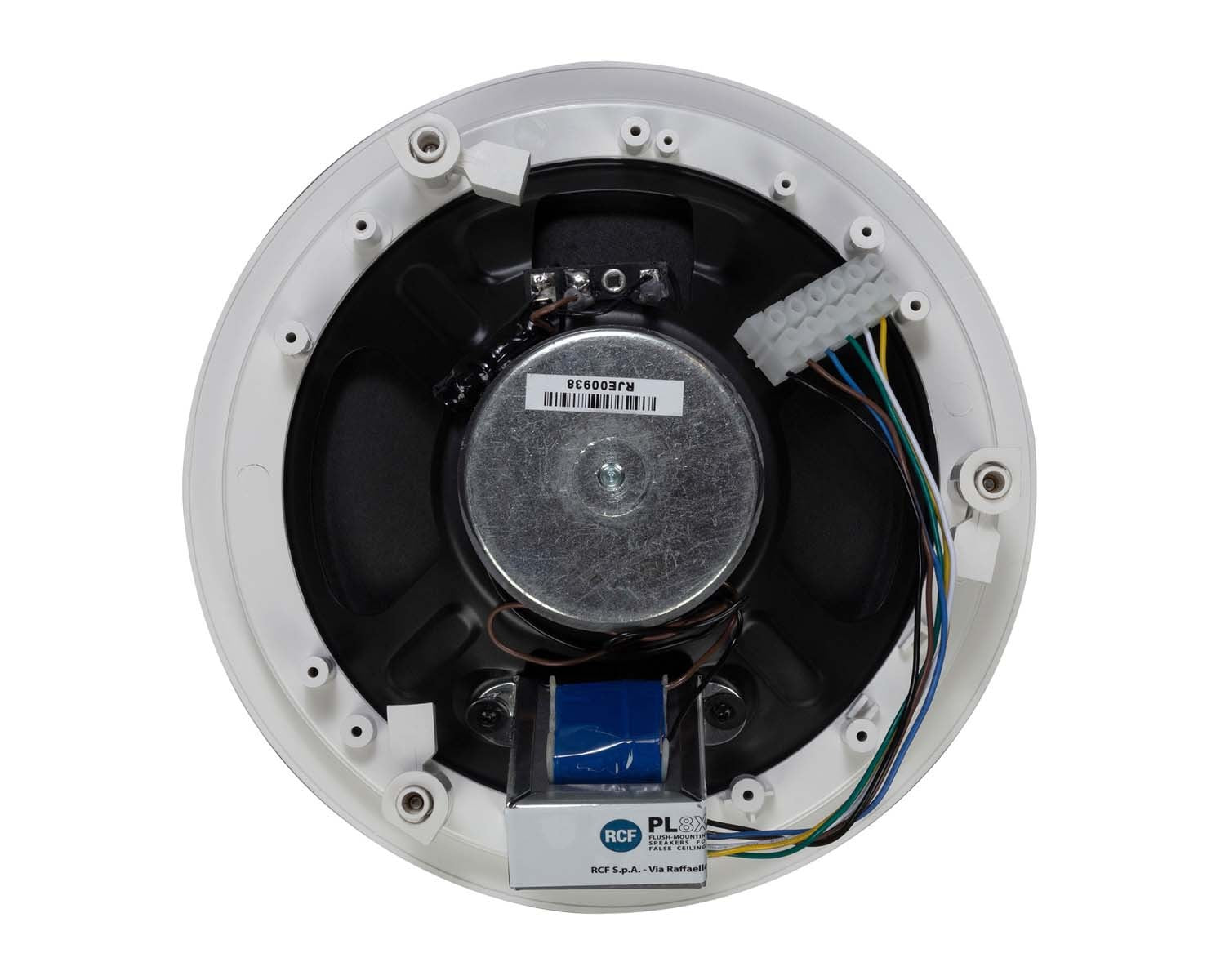

Built-in multi-tapped transformer for 100/70V constant voltage connection
Body in self-extinguishing plastic (UL 94V-0) and front metal grille RAL 9003 White
IP 44 protection

SPECIFICATIONS:

Acoustical Specifications
Type of speaker:Ceiling
Frequency Response:60 Hz ÷ 20 kHz
Max SPL @ 1m:109 dB
Horizontal coverage angle:80°
Vertical coverage angle:80°
Power Handling:20 W RMS
Peak Power Handling:40 W PEAK
System Sensitivity:93 dB
Impedance:8 Ω
Protections:IP 44

Transducers
Speaker:8″
Coaxial:1″

Input Section
Input connector:6 pin terminal block
Constant voltage:100 V / 70 V
Power Selection:20 – 10 – 5 – 2.5 W (100 V)

Cabinet
Hardware:Plastic material
Colour:White
Grille:Steel

Physical & Dimensions
Height: 88mm
Width: 247mm
Depth: 247mm
Weight: 1.73kg
