SPECIFICATIONS:

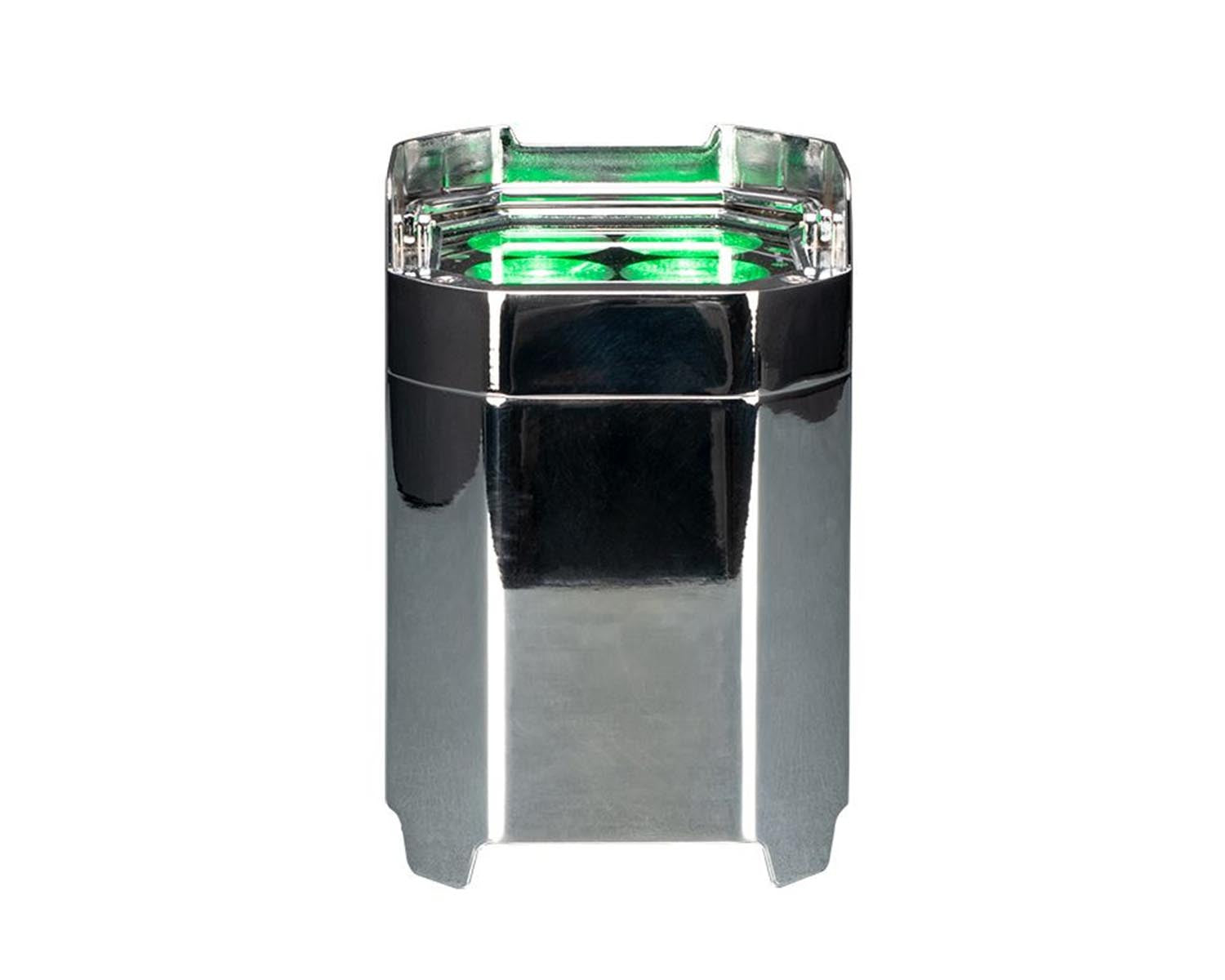

FIXTURE SOURCE
4 x 10-Watt RGBA LEDs (4-in-1 – Red, Green, Blue & Amber)
50,000 Hour Average Life*
may vary depending on several factors including but not limited to:
environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
LUX: 9903 @ 2M; 2303 @ 4M

FIXTURE OPTICS
11-degree beam angle

FIXTURE CONTROL / CONNECTIONS
Control protocol: WiFLY EXR Wireless DMX
11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
Remote control: WiFLY EXR DMX, UC-IR (Included), Airstream IR
5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 colour/fade combo mode); Static Color mode; and Wireless DMX ControlWith Wired Digital Communication Network

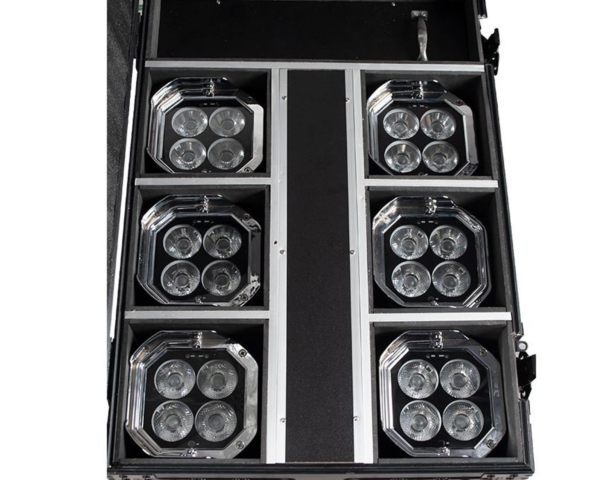

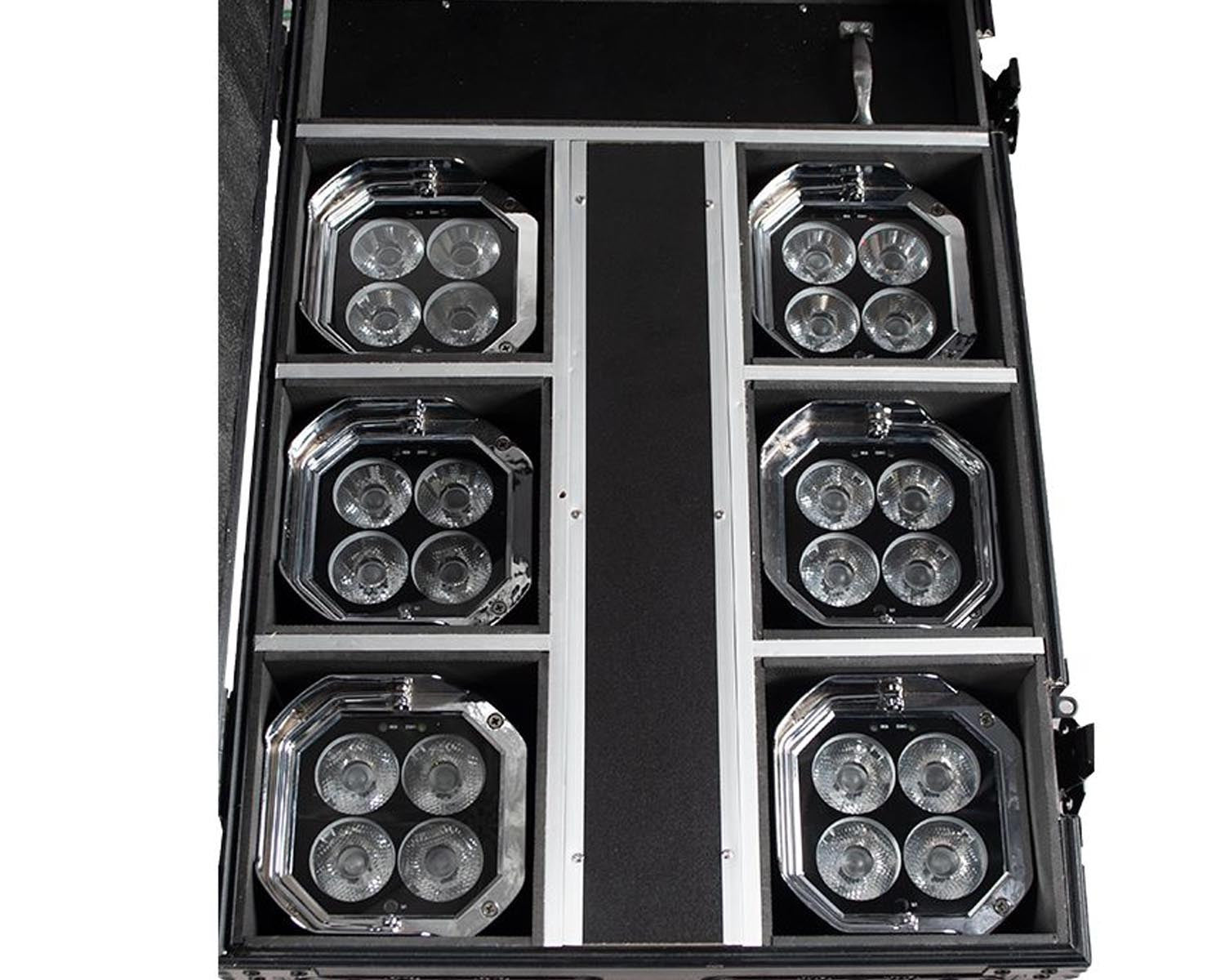

Contact Charging system. 6x Charging bases and power supplies included in flight case

FIXTURE FEATURES
IP65 Outdoor Rated

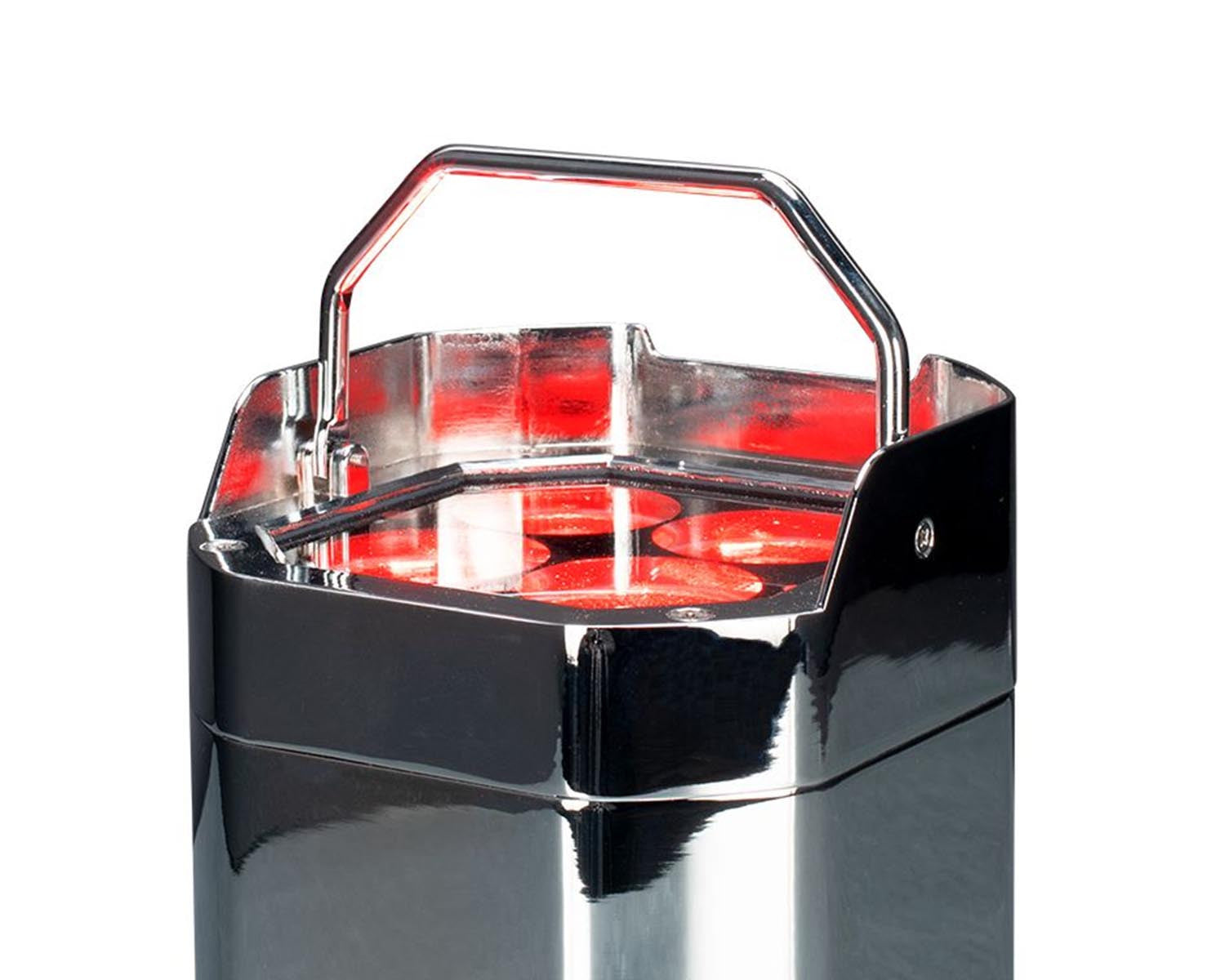

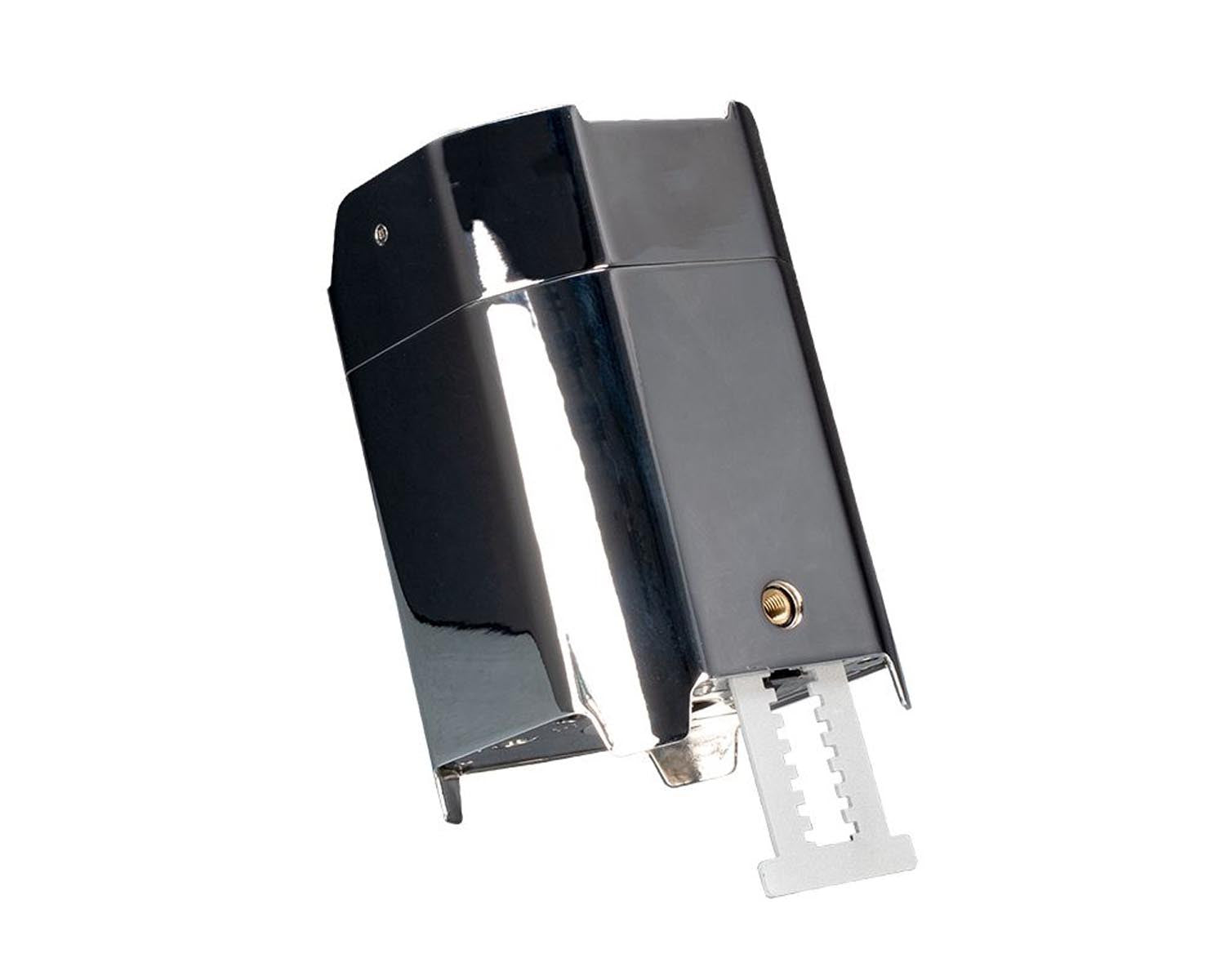

Built-in kickstand to angle fixture when sitting on the floor

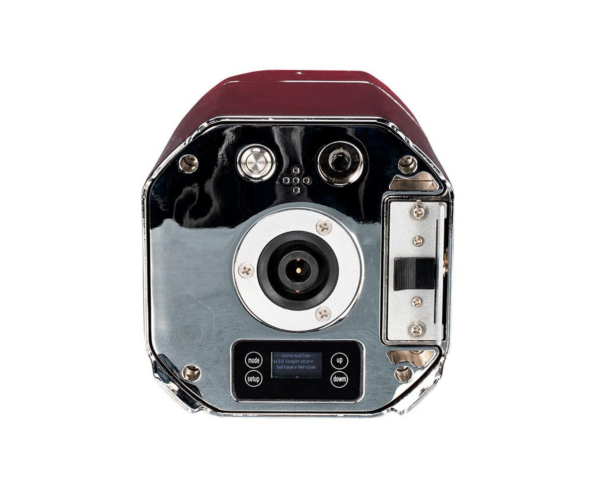

4-touch button OLED display on rear panel
Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR
Battery Transceiver
64 built-in Color Macros

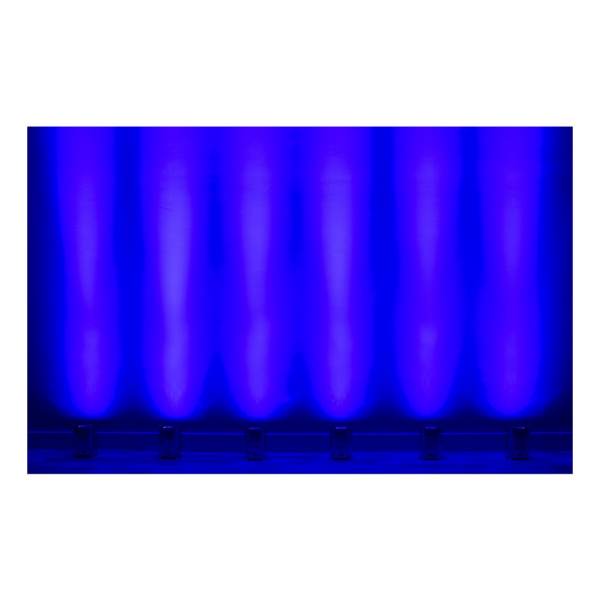

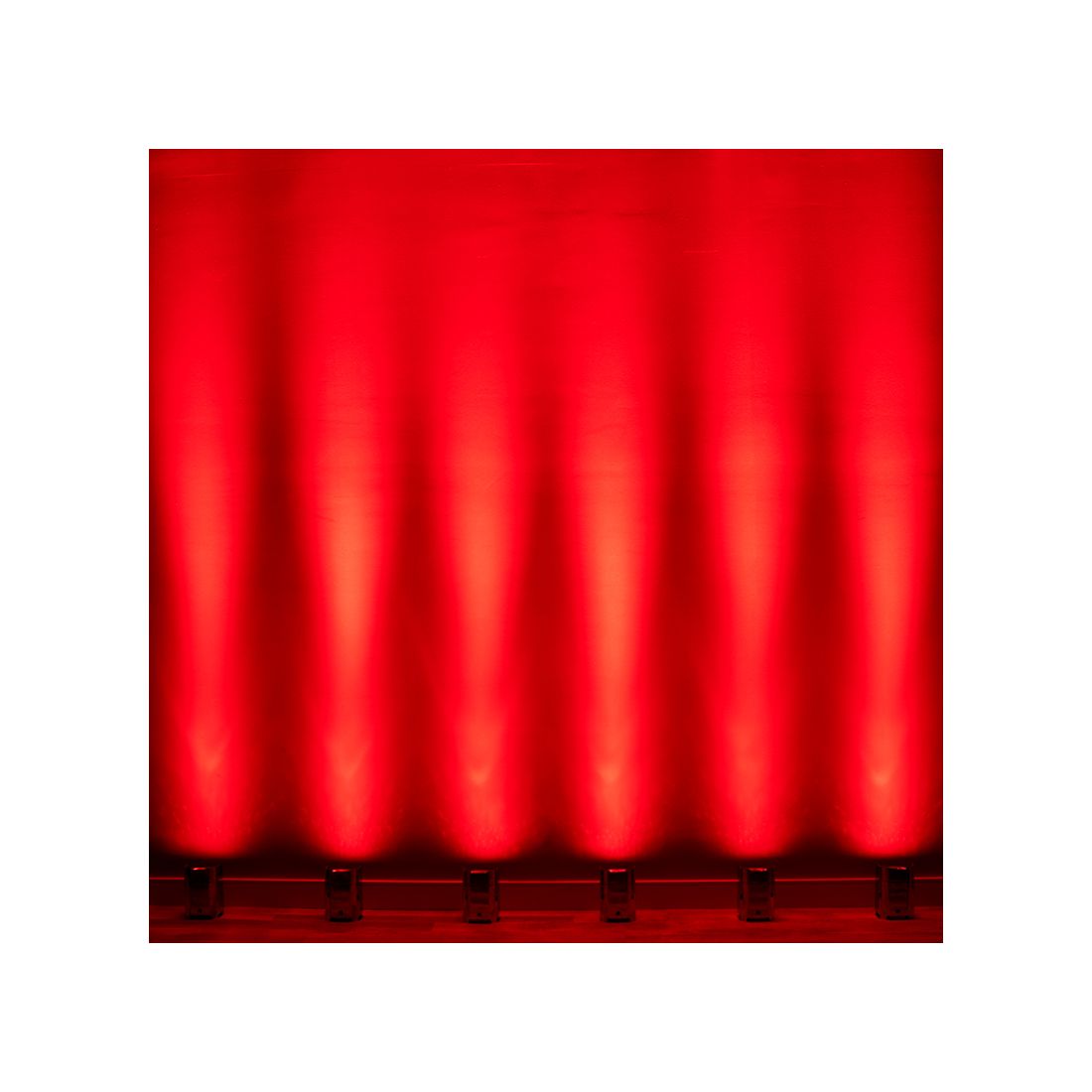

Variable RGBA colour mixing offers a smooth, seemingly unlimited colour palette – Great for Wall Washing!
LED pulse and strobe effect (0.2Hz-11Hz)
Flicker Free Operation
Electronic Dimming: 0 – 100% with 6 dim modes and 4 dim curves
Run all night – No duty cycle
Energy Save Mode
Built-in alarm system with On/Off
Battery charge indicator on each fixture

FIXTURE BATTERY
Battery Type: fixed lithium battery
Battery Energy: 162.8WH (Watt Hours)
Battery Weight: 0.84 kg.
Battery Voltage: 14.8V
Battery Capacity: 11000mAh (Typical Capacity)
Total Lithium Ion Cells: 20 pieces
Battery Wrap Material: PVC sleeving + highland barley paper
Battery Charge Time: 7 Hours
Battery Life: 20 hours (changing colours); 40 hours (single colour)

FIXTURE DIMENSIONS / WEIGHT (SINGLE UNIT)
Dimensions
Length: 5.6” (143mm)
Width: 5.6” (143mm)
Vertical Height: 8.3” (211mm)
Weight: 6.17 lbs. (2.8kg.)

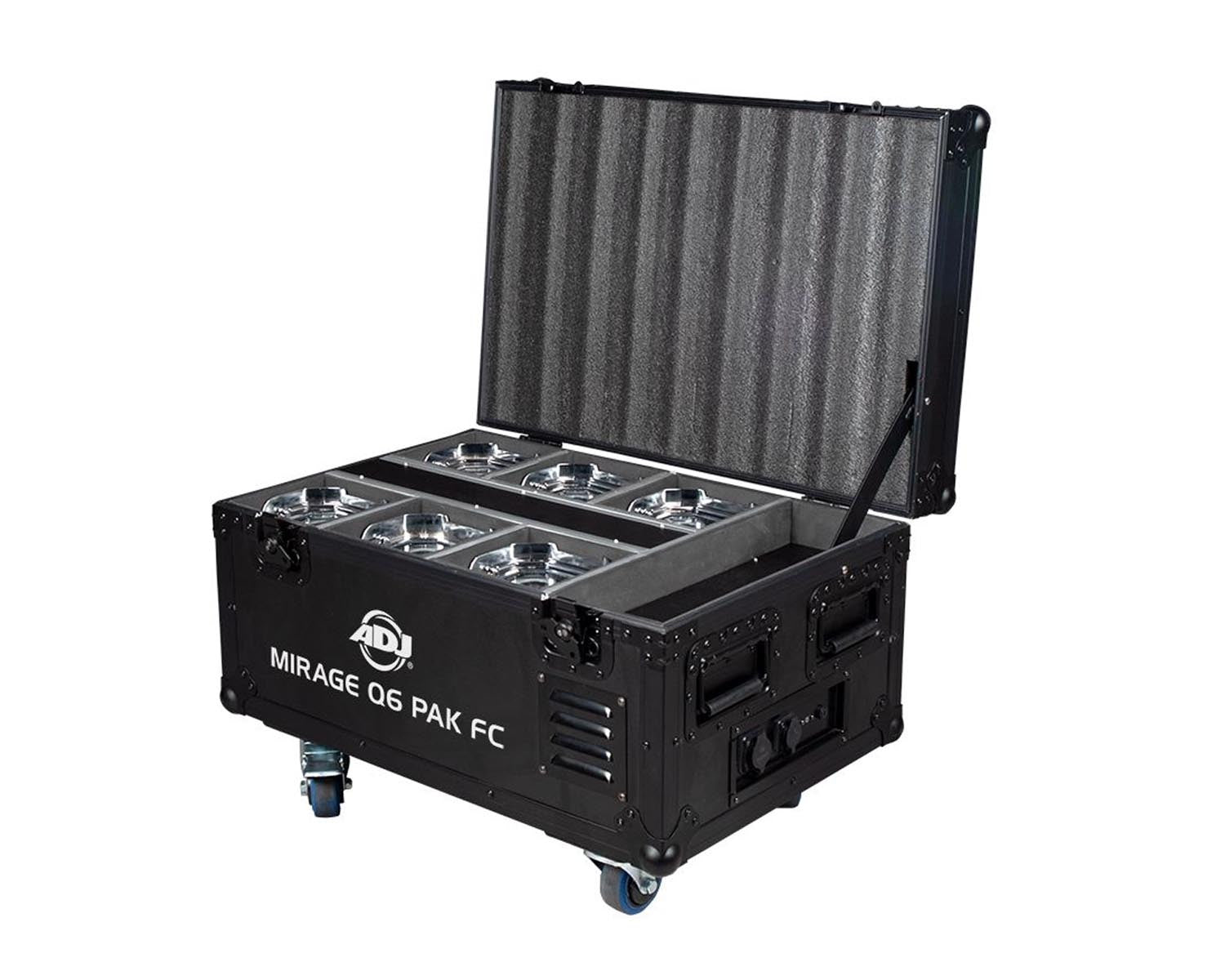

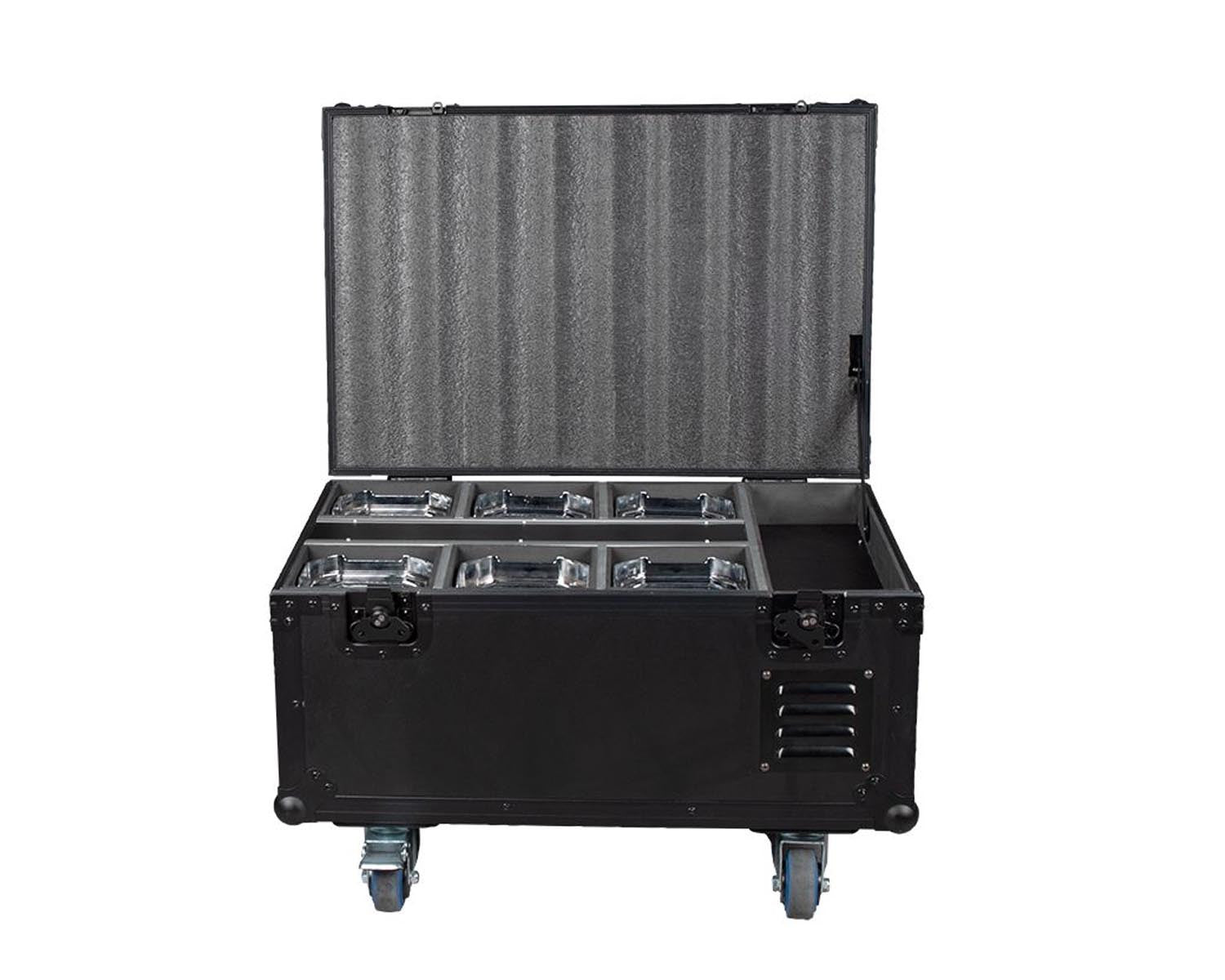

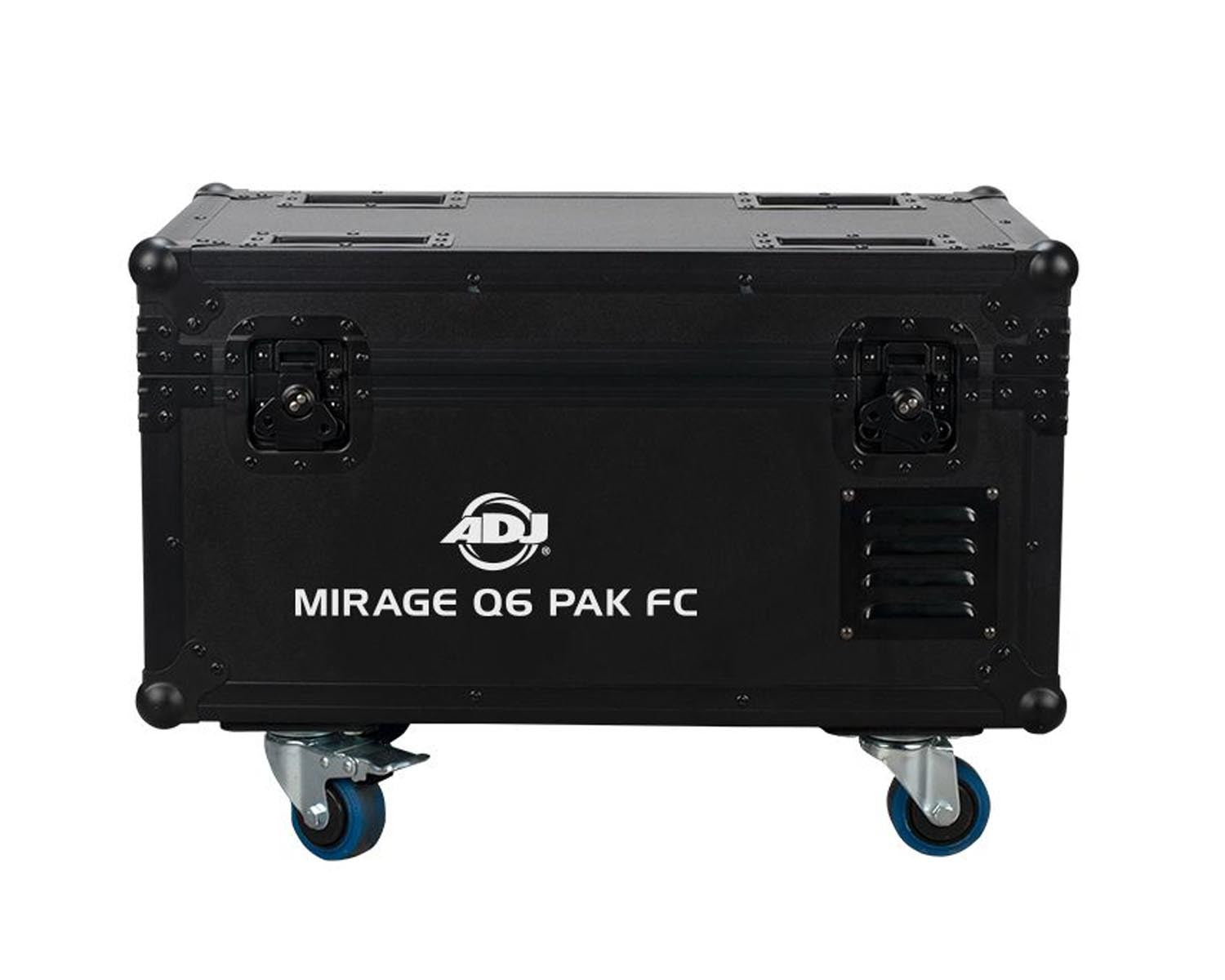

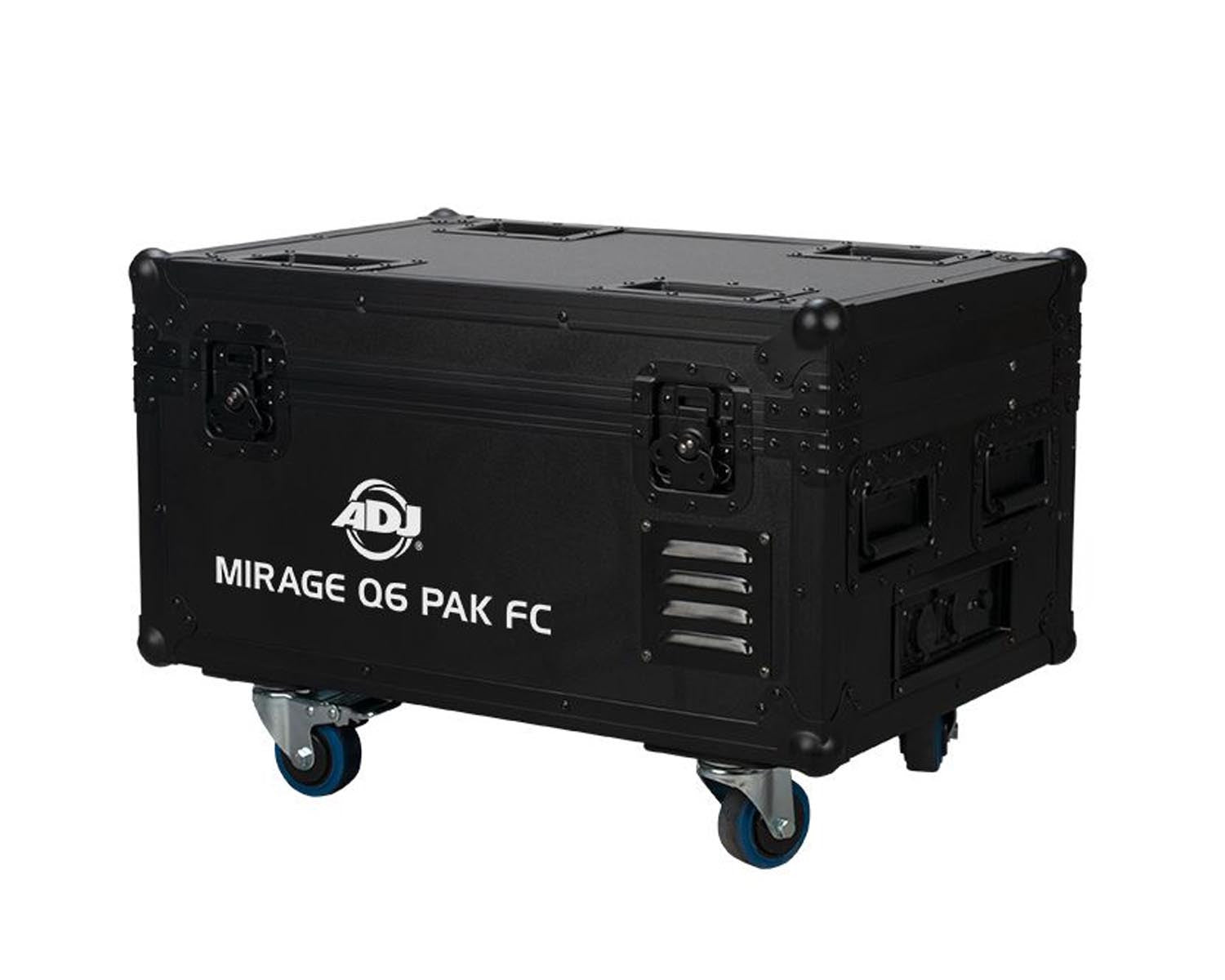

MIRAGE Q6 PAK DIMENSIONS / WEIGHT (loaded case with 6 fixtures)
Length: 26.47” (672mm)
Width: 18.15” (461mm)
Vertical Height: 17.68” (449mm)
Loaded Weight: 97.9 lbs. (44.4 kg)

FIXTURE ELECTRICAL / THERMAL
Power Input: DC 17.3V
Amperage Draw: 2A
40W Max Power Consumption (each unit)
14°F to 113°F (-10°C to 45°C)

PAK ELECTRICAL / THERMAL
Power Input: AC100VAC~240VAC, 50/60Hz
IP65 Power Locking Input and Output
Max Power Consumption: 400 Watts
Power Draw: 4A
Charge status indicator
14°F to 113°F (-10°C to 45°C)

FIXTURE CERTIFICATIONS
ETL Approved (Pending)
CE Approved

INSTALLATION
Rigging: Clamps (Not Included) / Floor
Working Position: Any (360°)
