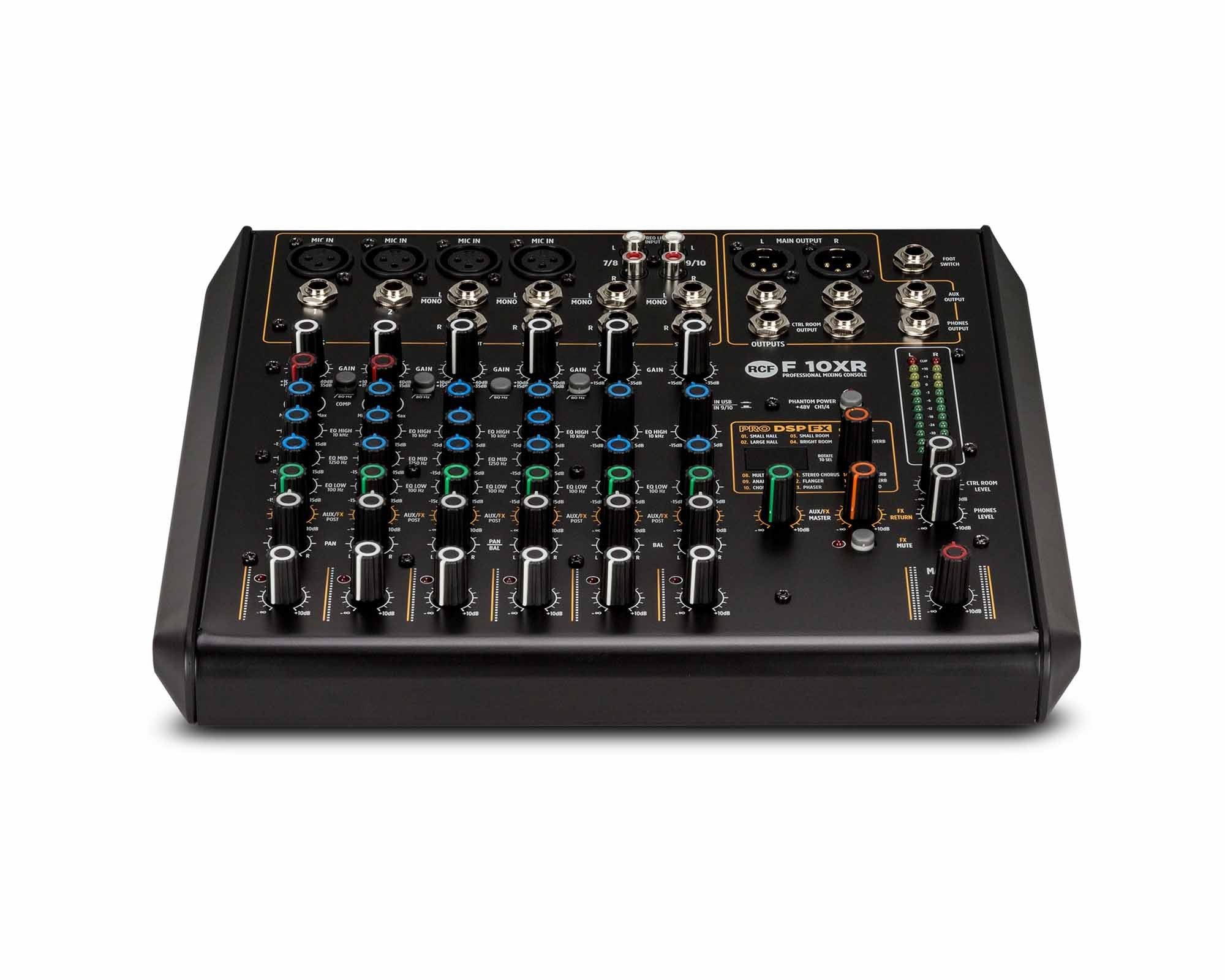

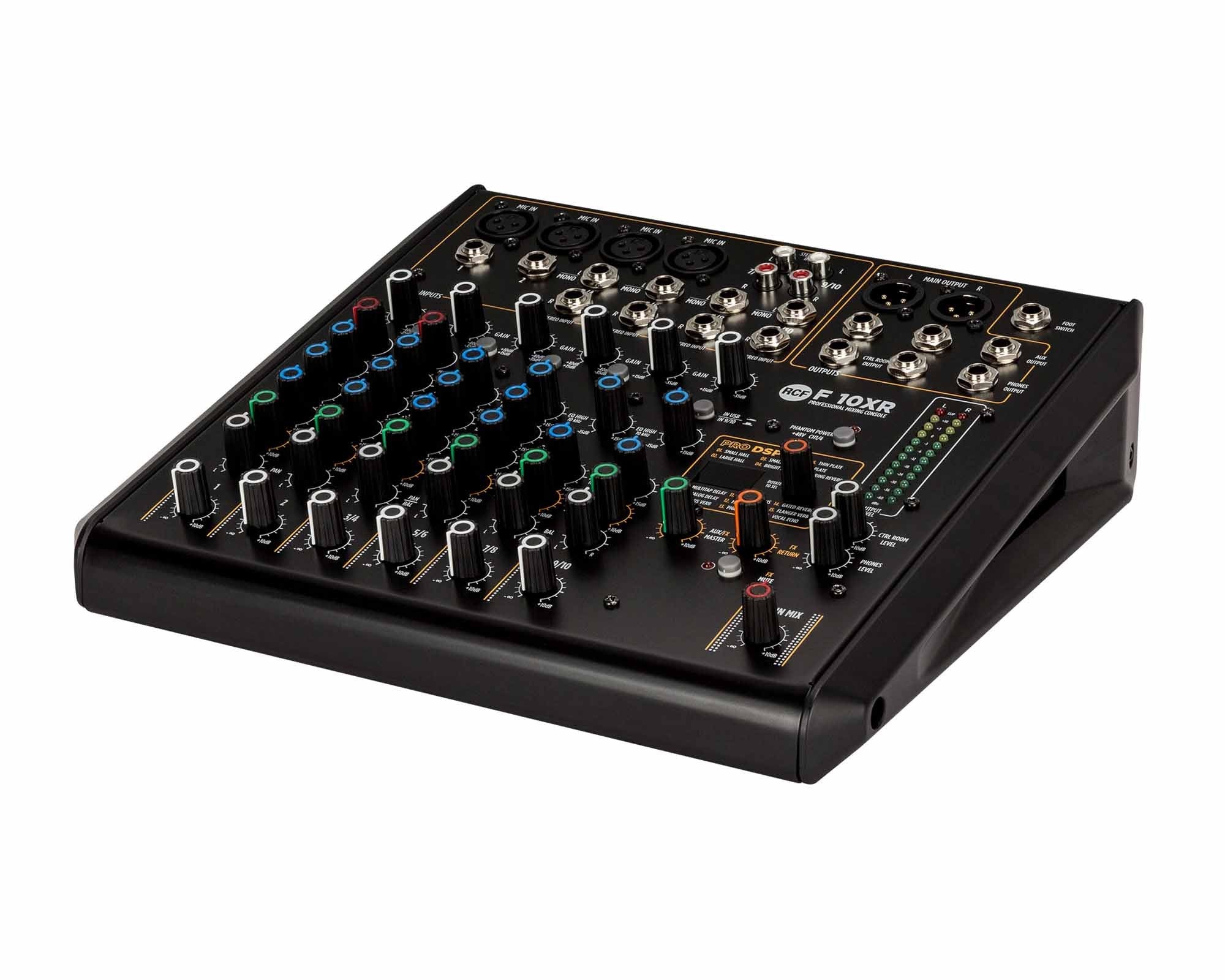

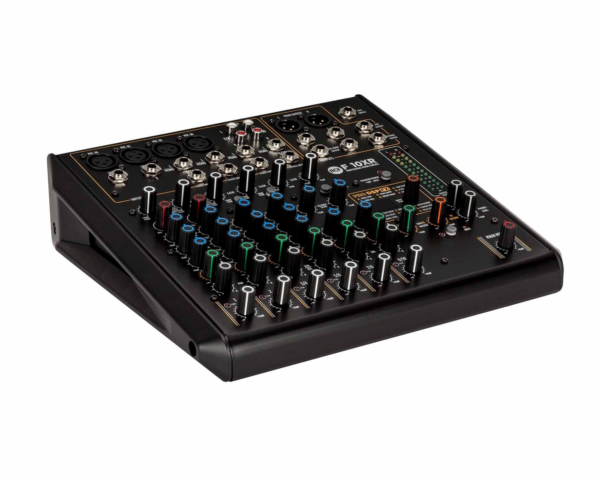

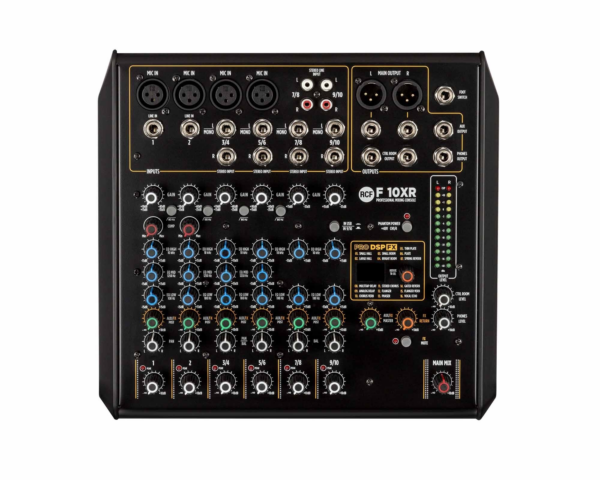

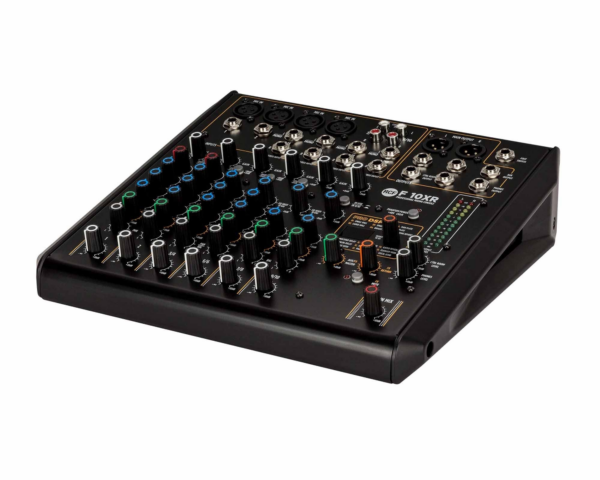

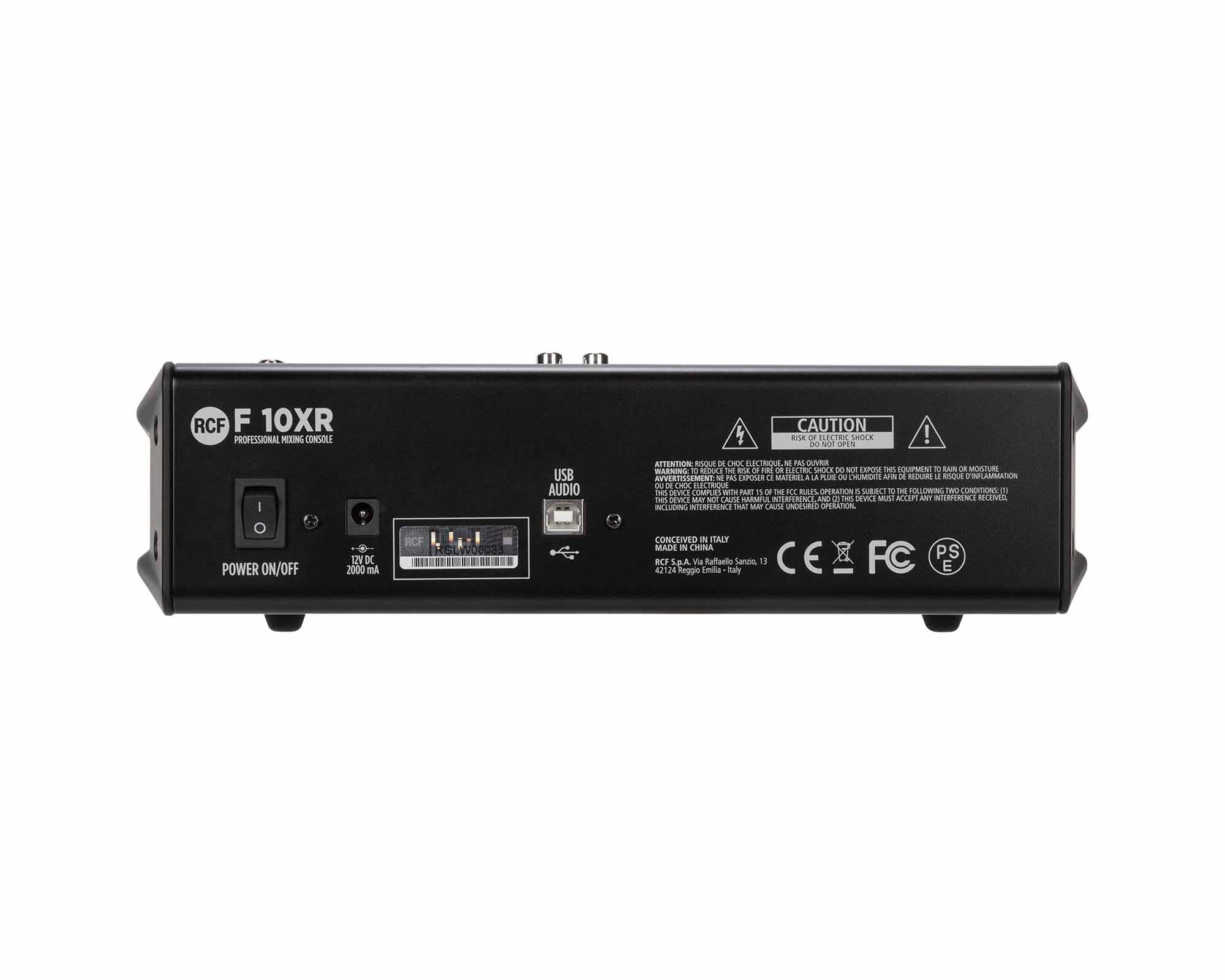

RCF F10XR – 10Ch Analogue Multi-FX Mixer 4xMic/2xMono/4xStereo-In

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

£232.99

1 in stock

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

4 Mic preamp inputs, 2 mono line inputs
4 Stereo line inputs
PRO DSP FX onboard with 16 presets
Stereo recording and playback via USB port
2 single control compressors
Balanced main output +28 dB (Stereo XLR + TRS)
1 aux/FX (post)
Sturdy metal chassis
External universal power supply
Designed and engineered in Italy

SPECIFICATIONS:

Electronic Specifications
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out <0,02

Inputs
Mic: 4
Gain Range: 0 dB ÷ -50 dB
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 2
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 15 kohm

Outputs
Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Output: 1
Phones: 1

Outputs Specifications
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm

Compressors
RCF Compressors: n° 2 Single Control compressors on channels 1&2

EQ
Input Channels EQ: 2 Shelving / 1 Generic
Description: High:+/-15 dB @ 10 kHz Shelving
Mid:+/-15 dB @ 1,250 kHz Bell
Low:+/-15 dB @ 100 Hz Shelving

Auxiliary Sends
FX POST: 1

Internal Effects
Send Effects: 1
USB Audio
Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0

Other Features
Footswitch: Yes

Electrical Specifications
Power supply: External
Voltage requirements: 100 V – 240 V
Power consumption (MAX): 18 W

Standard Compliance
CE marking: Yes

Physical Specifications
Cabinet/Case Material: Metal
Color: Black

Size
Height: 82 mm / 3.23 inches
Width: 294 mm / 11.57 inches
Depth: 275 mm / 10.83 inches
Weight: 2.8 kg / 6.17 lbs

Shipping Information
Package Height: 130 mm / 5.12 inches
Package Width: 400 mm / 15.75 inches
Package Depth: 345 mm / 13.58 inches
Package Weight: 3.8 kg / 8.38 lbs
