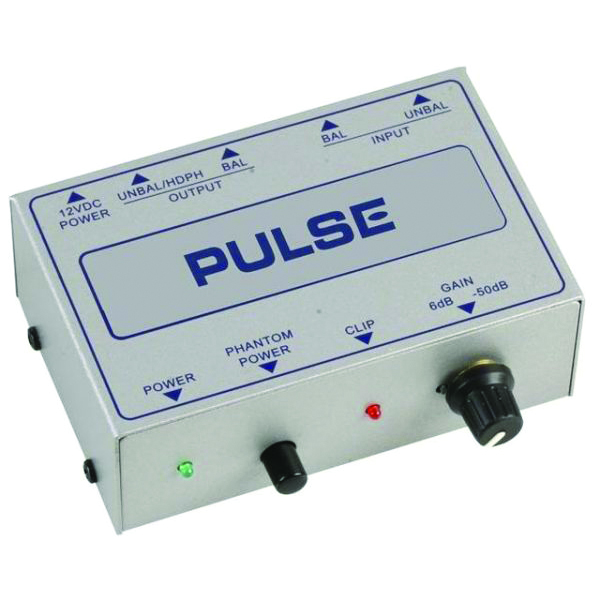

The MPRE is designed to be small, simple and cost effective microphone pre amplifier suitable for a variety of applications.

SPECIFICATIONS:

Inputs: Female XLR (bal.), 6.35mm (¼”) Jack socket (unbal.)
Outputs: Male XLR (bal.), 6.35mm (¼”) Jack socket (unbal.)
Gain control
Power and clip LED indicators
Phantom power: +36V
Input impedance: 10kR
Input level: +4dBV XLR (max), +10dBV Jack (max)
Gain: 50dB XLR (max), 44dB Jack (max)
THD: <0.01%
Power: 12VDC adaptor (included)
Dimensions (WxHxD): 113x40x73mm
Weight: 349g
