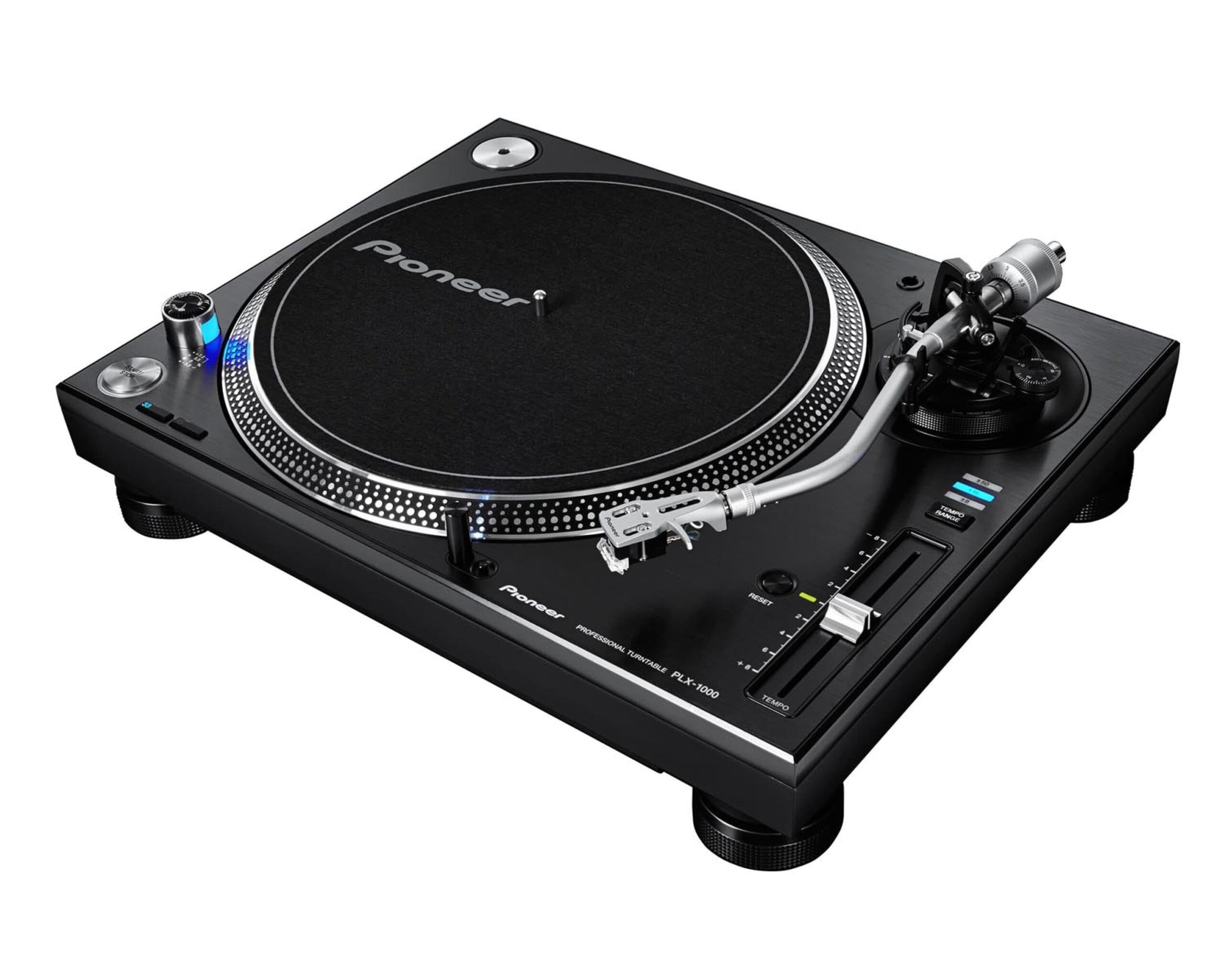

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.

TURN THE TABLES:  The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).

EXCELLENT SOUND DESIGN:  The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.

PICK UP THE PACE:  Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

FLEXIBLE CONNECTIVITY:  Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

SPECIFICATIONS:

Included Accessories:

Turntable sheet

Slip mat and sheet

Dust cover

Head shell

Balance, sub and shell weights

Audio cable

Ground wire

Physical & Dimensions

Width:  453 mm

Height:  159 mm

Depth:  353 mm

Weight:  14.6 kg

Turntable

Drive Method:  Quartz lock, servo-type, direct drive

Platter:  Aluminium, die-casting diameter: 332 mm

Motor:  3-phase, brushless DC motor

Braking System:  Electronic brake

Rotation Speed:  33⅓-45 rpm

Rotation Adjustment Range:  ±8, ±16, ±50 %

Wow and Flutter:  < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)

Signal-to-Noise Ratio:  70 dB

Starting Torque:  > 4.5 kgf・cm

Start Time:  Within 0.3 sec (at 33⅓ rpm)

Tone Arm

Arm Type: Universal type S-shape tone arm

Gimbal-supported type bearing structure

Static balance type

Overhang:  15 mm

Effective Length:  230 mm

Tracking Error:  Within 3°

Height Adjustment Range:  6 mm

Stylus Pressure Variable Range:  0-4 g (1 scale 0.1 g)

Single Cartridge Weight:  3.5-13 g

Terminals

Outputs:  1 ANALOGUE (RCA)
