Mercury - RG59B/U 75 Ohms Shotgun Coaxial Cable - CCA Braid Black 100m

In: BULK INSTALLATION CABLE, BULK COAXIAL & RF CABLE

Mercury – RG59B/U 75 Ohms Shotgun Coaxial Cable – CCA Braid Black 100m

75 Ohms RG59 coaxial cable coupled with a two core power cable.

£68.99

1 in stock

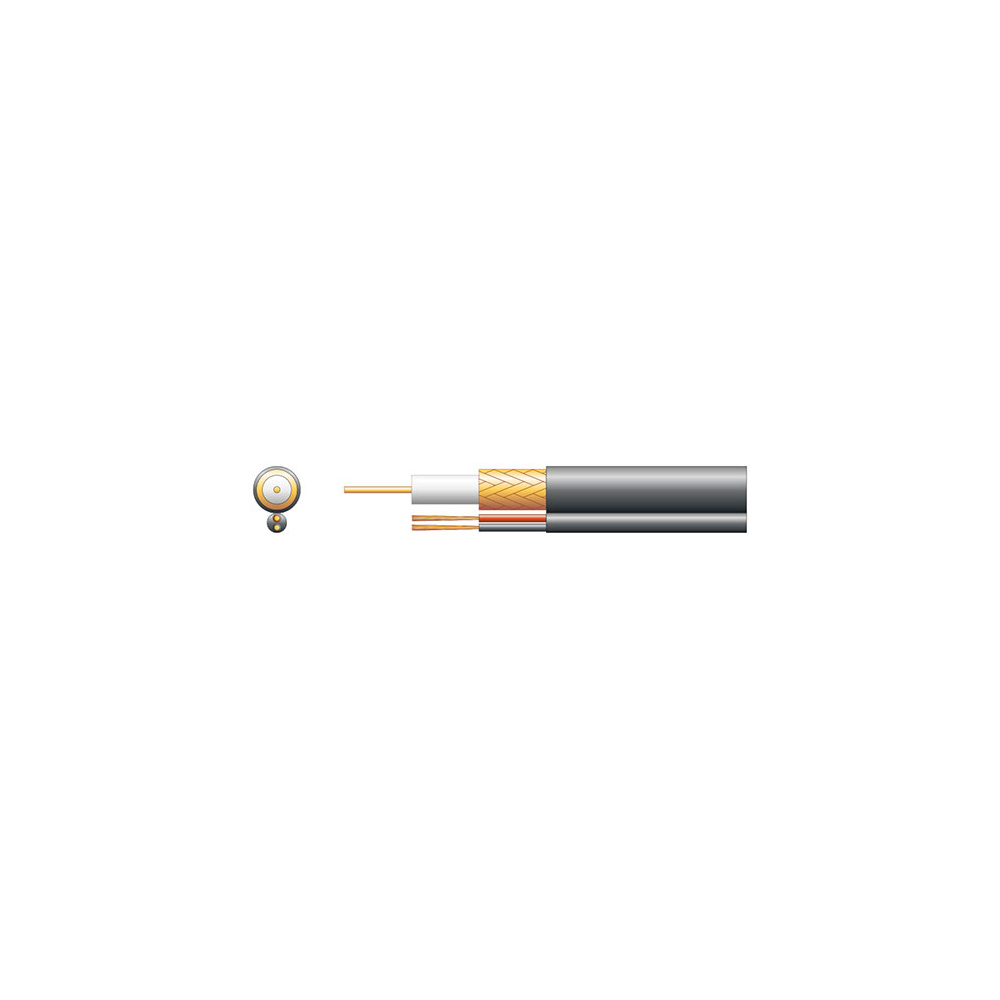

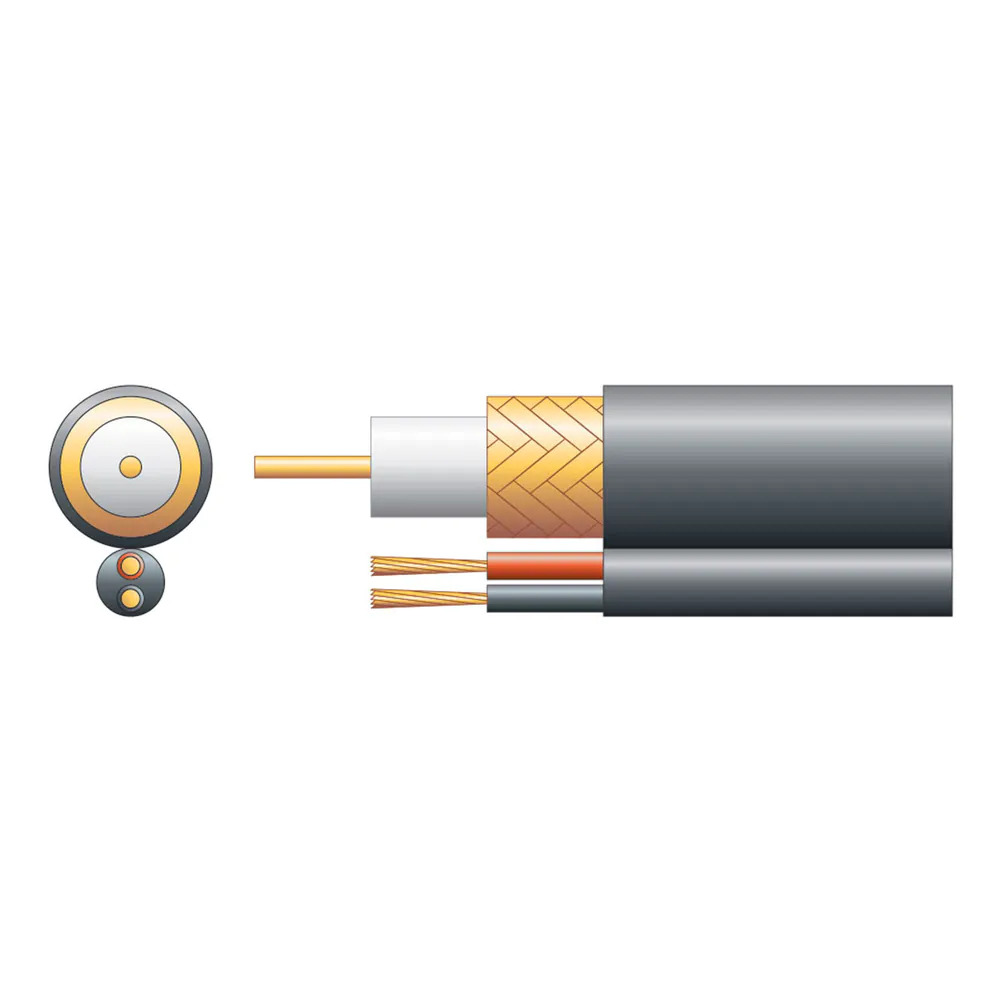

75 Ohms RG59 coaxial cable coupled with a two core power cable. Constructed of a solid oxygen free copper conductor, foam filled polyethylene dielectric and copper clad aluminium braid. Paired with a two core strand conductor double insulated power cable. Designed for CCTV power and signal transmission.

Solid OFC coaxial conductor
Foam filled PE dielectric
CCA braid
Stranded OFC power cable conductor
Supplied in 100m reel with metric cut markers

Conductor diameter

0.8mmØ
CSA

0.5mm²
Dielectric

3.7mmØ foam PE
Braid

48 x 0.12mmØ
Cable : diameter

6mmØ
Impedance

75 Ohms
Capacitance

67pF/m
Velocity factor

83%
Power cable

2 x 7/0.38mmØ (0.79mm²) bare copper, red/black
Max. current

6A
Colour

Black
Length

100m
Weight

6.4kg
Return loss 5-400MHz

24dB min./100m
Return loss 450-1000MHz

20dB min./100m
Return loss 1000-2150MHz

16dB min./100m
Attenuation @ 5MHz

2.8dB max./100m
Attenuation @ 50MHz

5.1dB max./100m
Attenuation @ 100MHz

7.3dB max./100m
Attenuation @ 200MHz

10.1dB max./100m
Attenuation @ 400MHz

14.9dB max./100m
Attenuation @ 860MHz

22.1dB max./100m
Attenuation @ 1000MHz

24.7dB max./100m
Attenuation @ 1750MHz

34.1dB max./100m
Attenuation @ 2150MHz

38.1dB max./100m
Conductor material

Solid OFC
Braid material

CCA

Mercury – RG59B/U 75 Ohms Shotgun Coaxial Cable – CCA Braid Black 100m
