Mercury – Cat6a U/FTP Outdoor Network Cable Black 305m

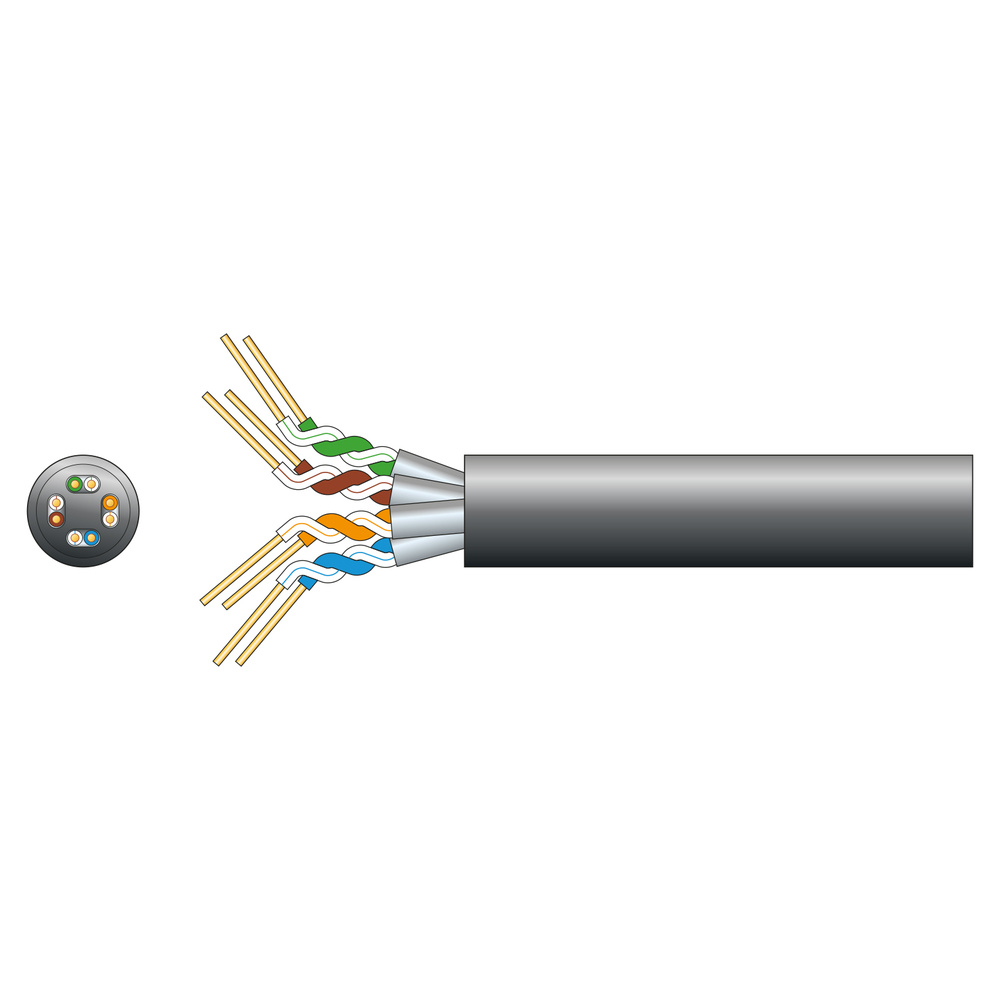

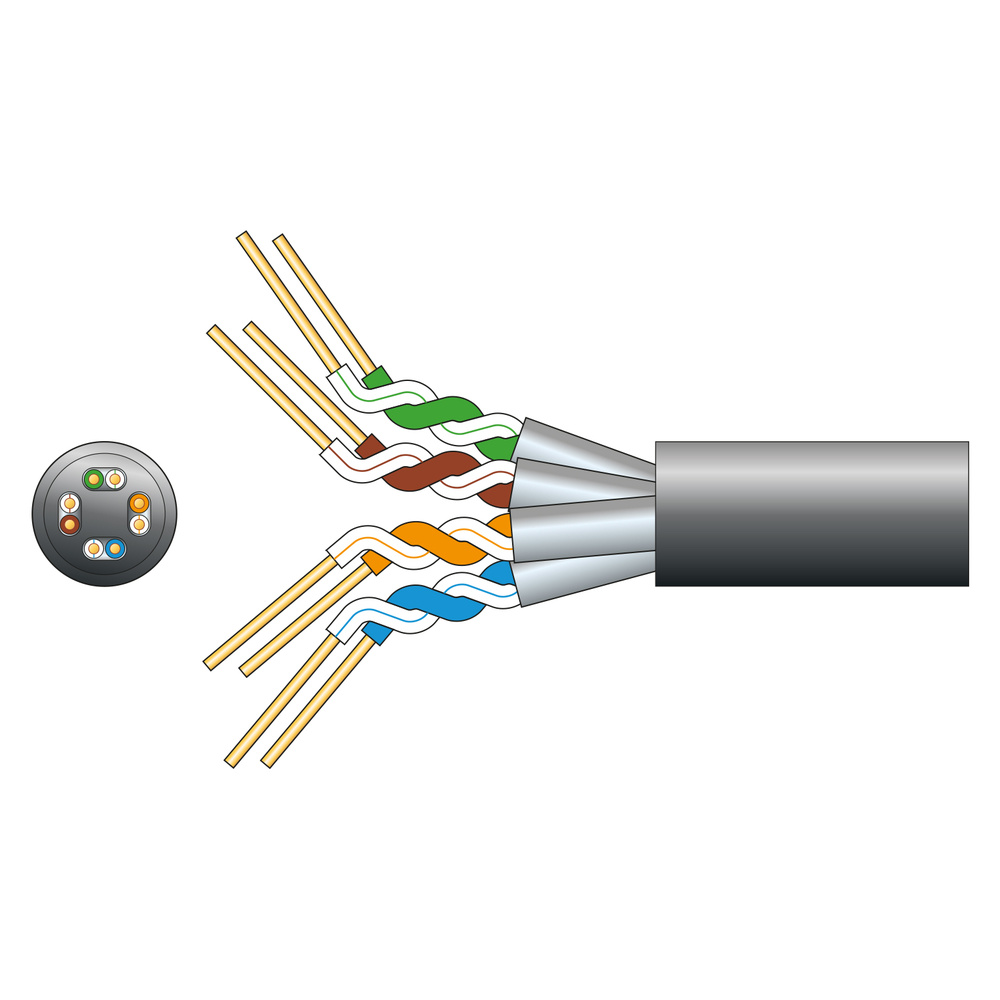

Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen.

£211.89

1 in stock

Cat6a oxygen free copper twisted pair data cable with LDPE sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.

AWG 23 oxygen free solid copper conductor
LDPE sheath with UV resistant properties ideal for outdoor installations
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard

  • Conductor
    Solid OFC
  • Strands
    8 x 1/0.560mmØ ±2%
  • Cable : diameter
    7.3±0.5mm
  • Screen
    Aluminium/Mylar foil
  • Insulation
    PE 1.330±0.05mmØ
  • Sheath
    LDPE 0.55±0.05mm thickness
  • Capacitance
    <330pf/100m
  • DC resistance @ 20°C
    <9.38 Ohms/100m
  • Impedance (100 to 250MHz)
    100±15 Ohms
  • Impedance (250 to 500MHz)
    100±22 Ohms
  • Return loss
    >26.62dB
  • Attenuation
    <2.03dB
  • NEXT
    >87.2dB
  • PSNEXT
    >85.15dB
  • ELFEXT
    >88.77dB
  • PSELFEXT
    >86.74dB
  • Phase delay
    <450.79ns
  • Colour
    Black
  • Length
    305m
  • Weight
    17.4kg
