Mercury – Cat6 U/UTP Network Cable Grey 305m

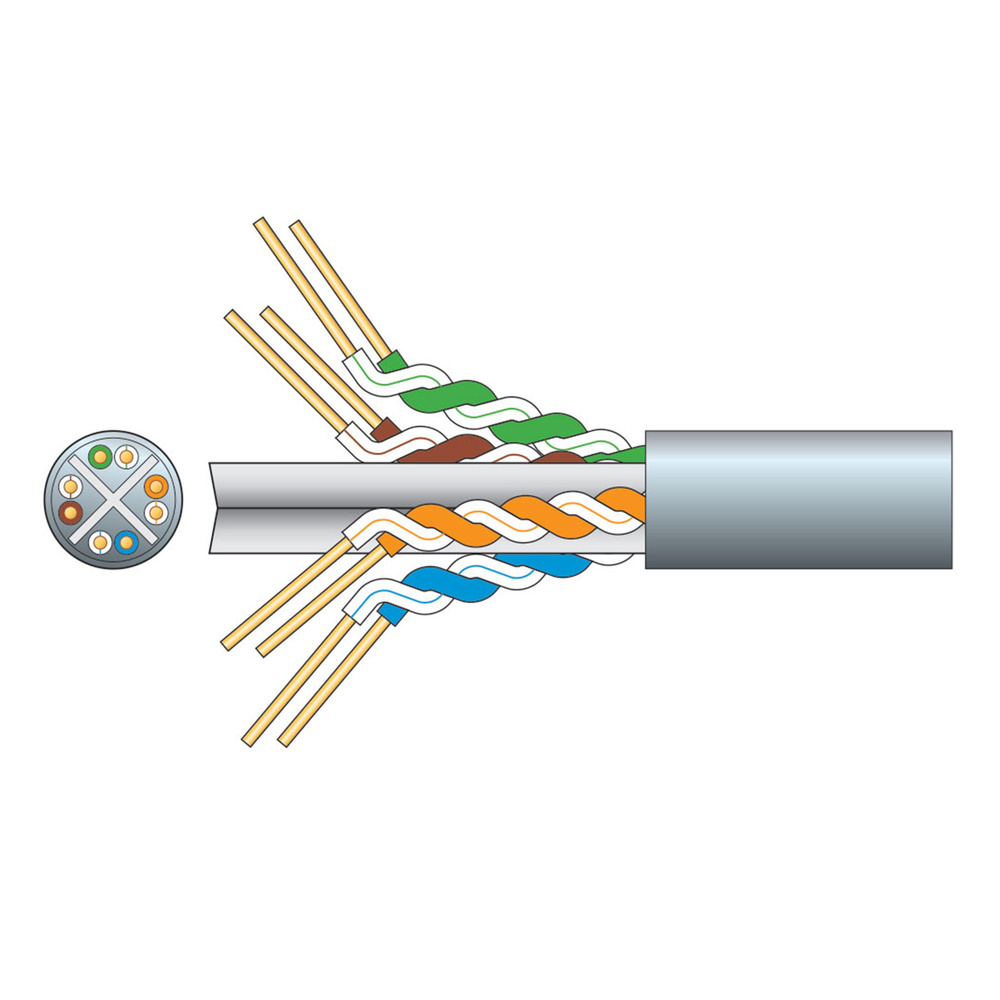

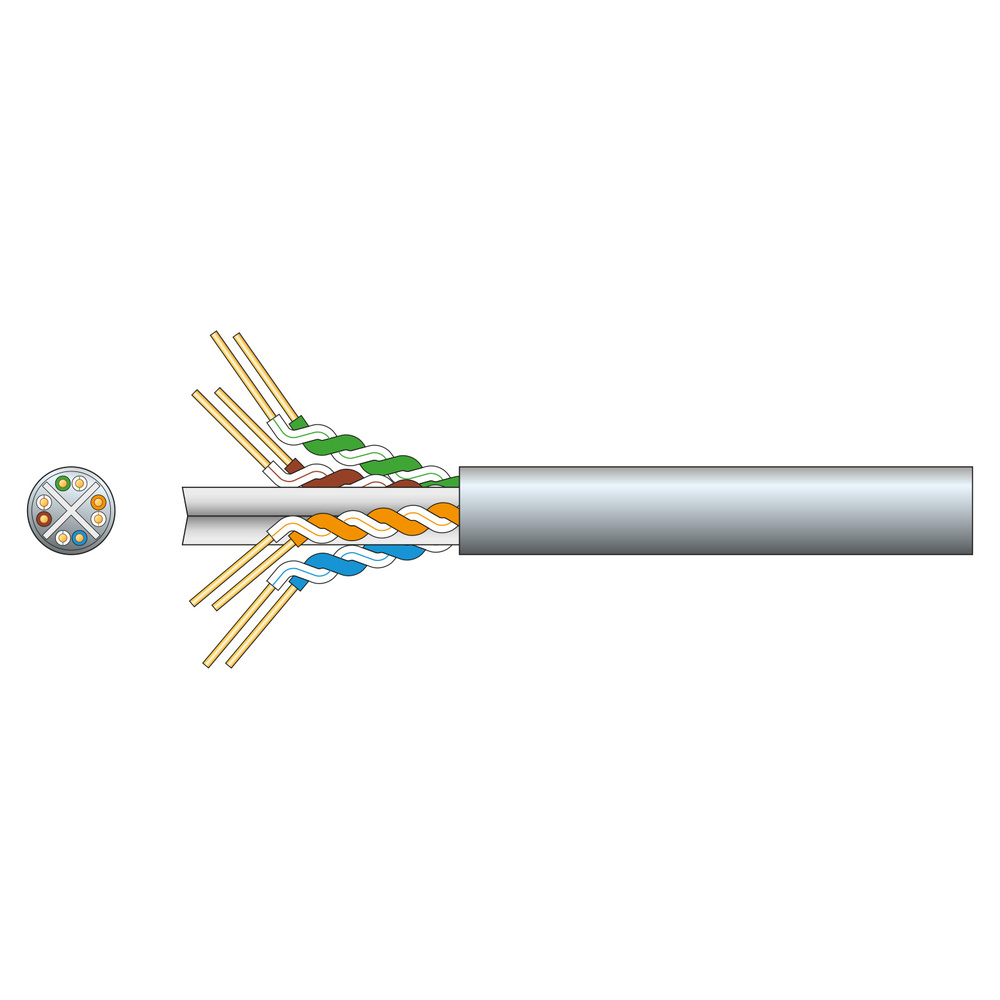

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals.

£162.49

1 in stock

Cat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Oxygen free solid copper conductor

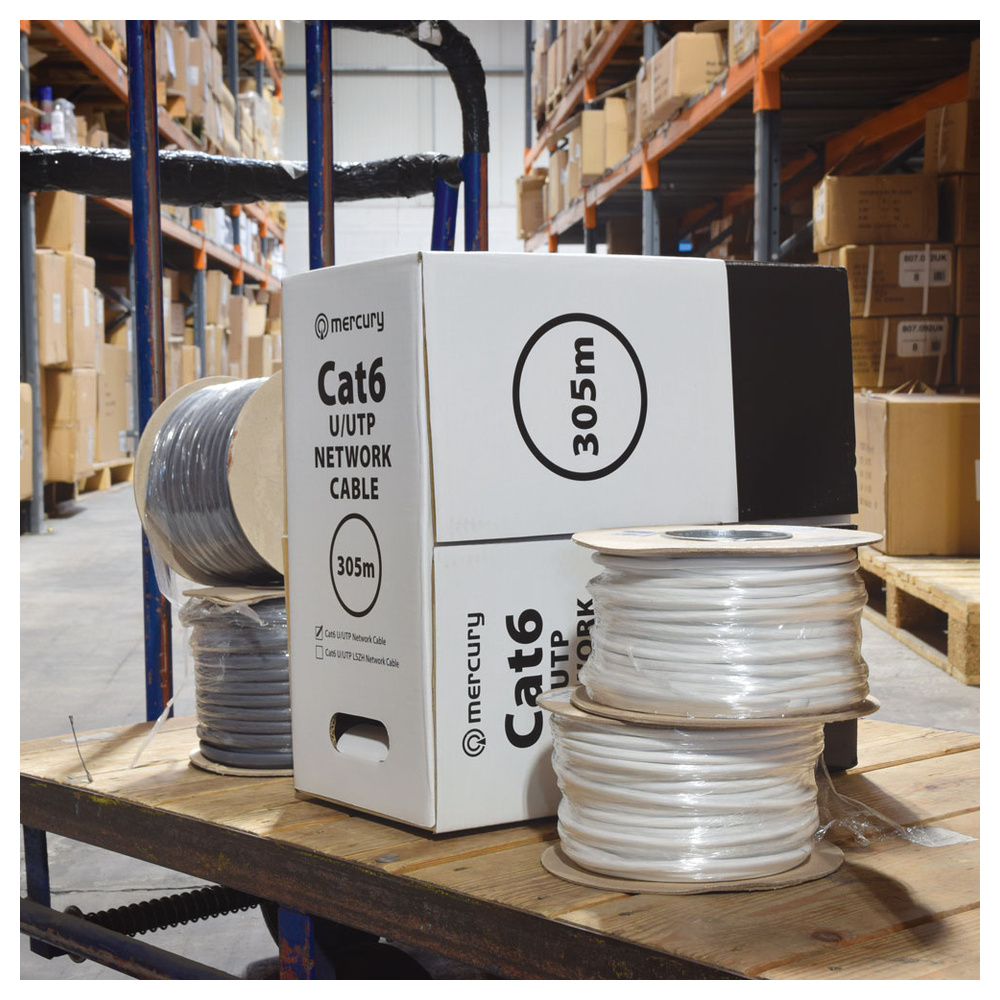

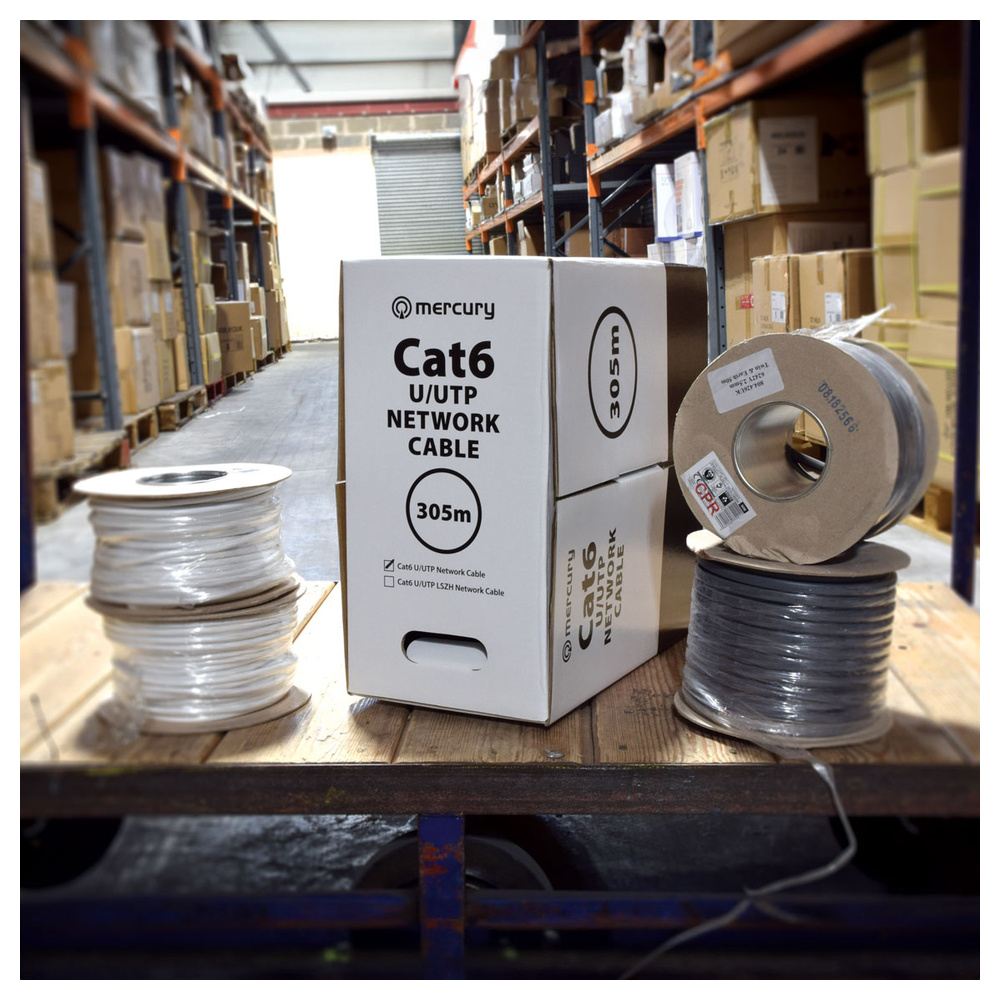

Supplied in an easy-pull dispensing box and marked at 1m intervals
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
HDBaseT Compliant

  • Strands
    8 x 1/0.54mmØ ±2%
  • Conductor CSA
    8 x 0.229mm²
  • Cable : diameter
    5.8mmØ
  • Insulation
    HDPE 0.195mm thickness
  • Sheath
    PVC 0.55mm thickness
  • Capacitance
    5.2nF/100m
  • DC resistance @ 20°C
    <9.5 ohms/100m
  • Impedance (100 to 250MHz)
    100±15 ohms
  • Return loss
    >17.3dB @100m
  • Attenuation
    <32.8dB @100m
  • NEXT
    >38.3dB
  • PSNEXT
    >36.3dB
  • ELFEXT
    >19.8dB
  • PSELFEXT
    >16.8dB
  • Phase delay
    <570ns
  • Conductor
    Solid OFC
