Mercury - Cat6 U/UTP LSZH Network Cable Lilac 305m
Mercury - Cat6 U/UTP LSZH Network Cable Lilac 305m - Image 2

In: ,

Mercury – Cat6 U/UTP LSZH Network Cable Lilac 305m

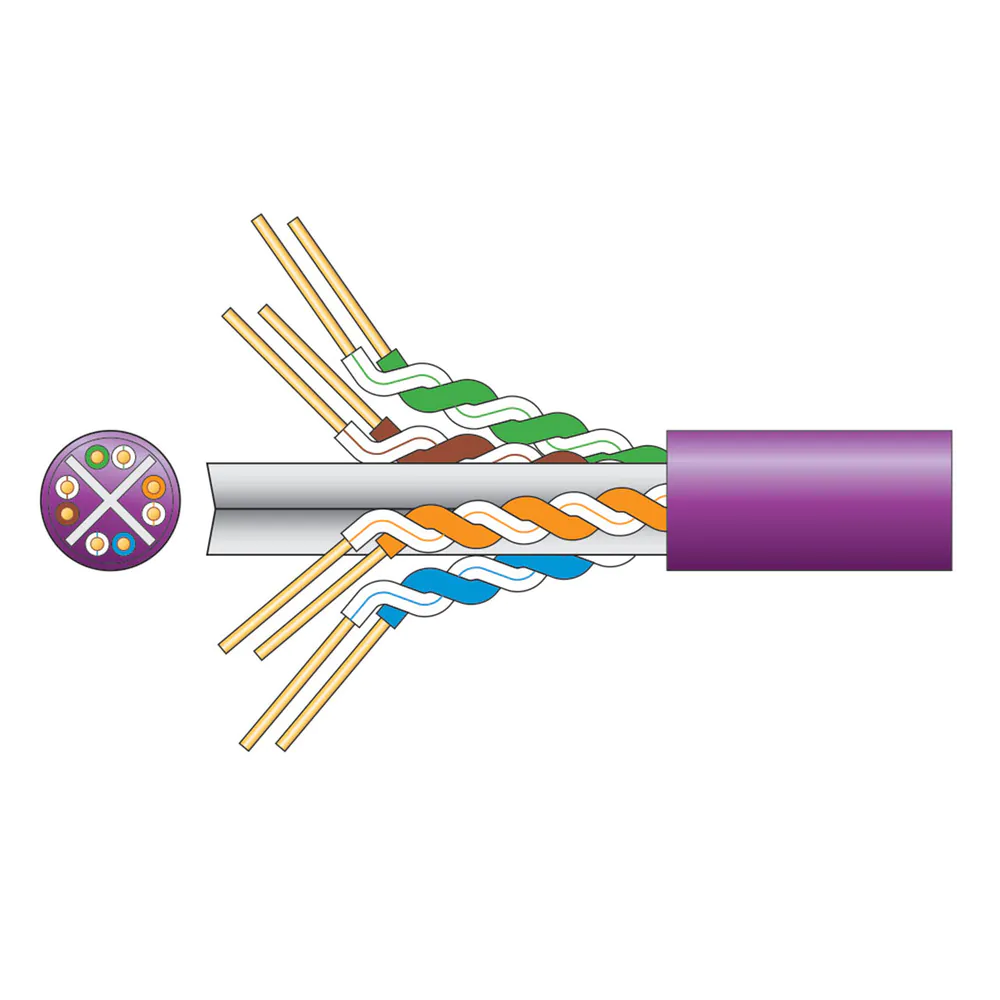

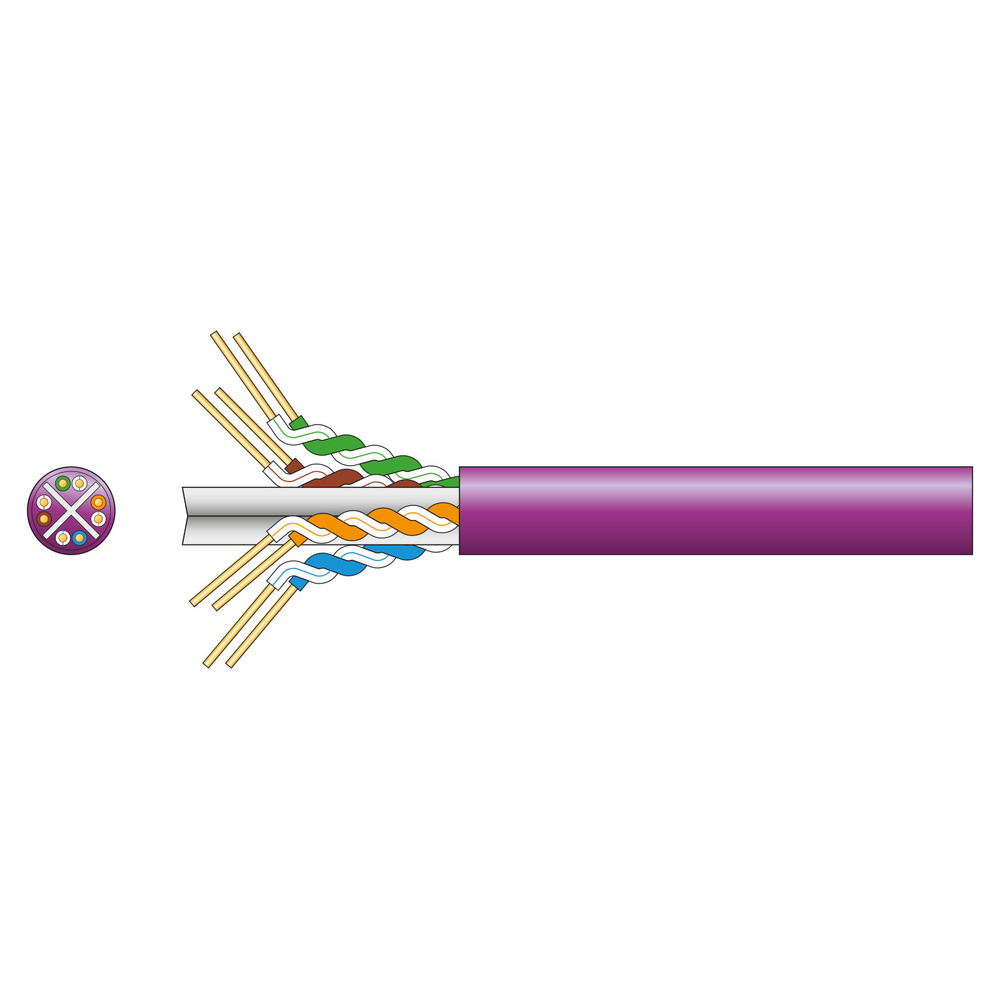

Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath.

£167.69

1 in stock

Cat6 oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
Oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat6 fluke test 100m at 250MHz
Complies to TIA/EIA-568 Cat6 standard
HDBaseT Compliant

  • Strands
    8 x 1/0.54mmØ ±2%
  • Conductor CSA
    8 x 0.229mm²
  • Cable : diameter
    5.8mmØ
  • Insulation
    HDPE 0.195mm thickness
  • Sheath
    LSHF 0.55mm thickness
  • Capacitance
    5.2nF/100m
  • DC resistance @ 20°C
    <9.5 ohms/100m
  • Impedance (100 to 250MHz)
    100±15 ohms
  • Return loss
    >17.3dB @100m
  • Attenuation
    <32.8dB @100m
  • NEXT
    >38.3dB
  • PSNEXT
    >36.3dB
  • ELFEXT
    >19.8dB
  • PSELFEXT
    >16.8dB
  • Phase delay
    <570ns
  • Cable colour
    Lilac
  • Length
    305m
  • Weight
    12.7kg
  • Conductor
    Solid OFC
