Mercury – Cat5e U/Utp LSZH Network Cable Lilac 305m

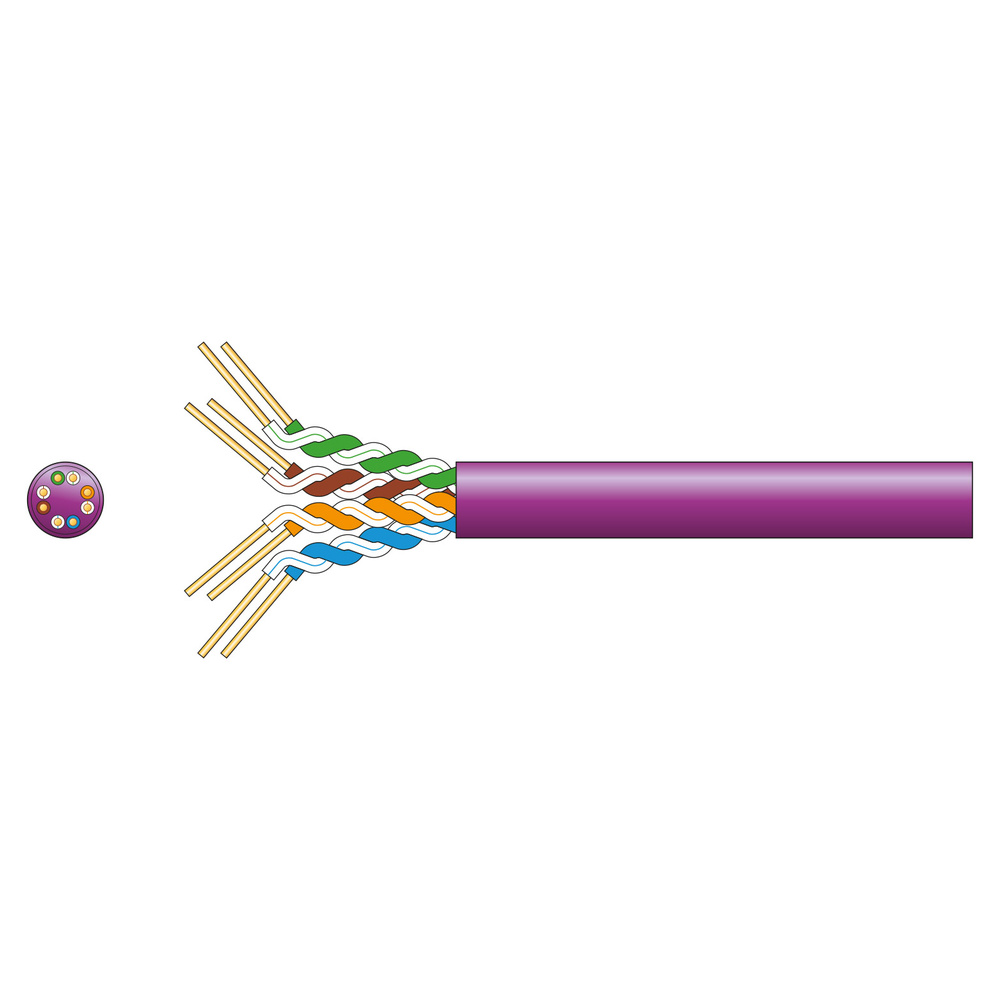

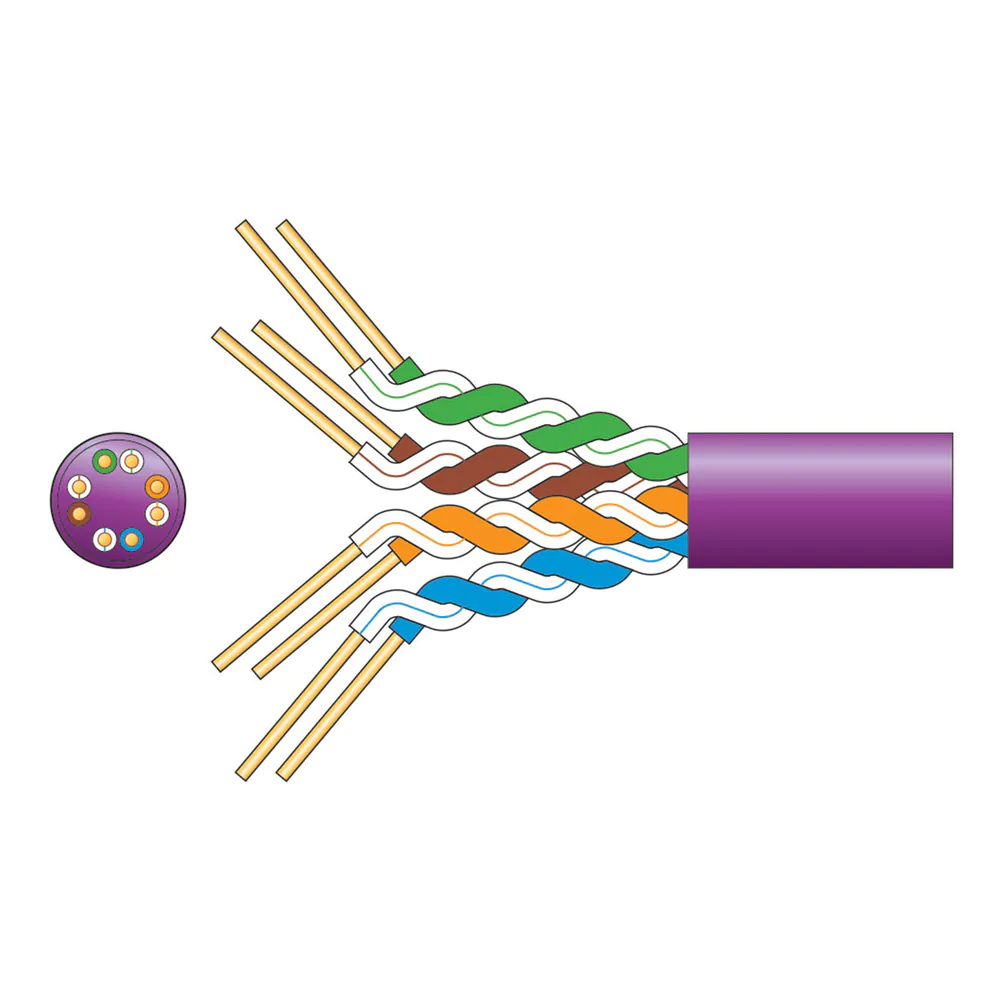

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath.

£122.39

1 in stock

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire
AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard
HDBaseT Compliant

  • Strands
    8 x 1/0.5mmØ ±2%
  • Conductor CSA
    8 x 0.196mm²
  • Cable : diameter
    5mmØ
  • Insulation
    HDPE 0.19mm thickness
  • Sheath
    LSZH 0.5mm thickness
  • Capacitance
    4.9nF/100m
  • DC resistance @ 20°C
    <9.5 ohms/100m
  • Impedance (1 to 100MHz)
    100±15 ohms
  • Return loss
    >20dB @100m
  • Attenuation
    <22dB @100m
  • NEXT
    >35.3dB
  • PSNEXT
    >32.3dB
  • ELFEXT
    >23.8dB
  • PSELFEXT
    >20.8dB
  • Phase delay
    <570ns
  • Cable colour
    Lilac
  • Length
    305m
  • Weight
    8.6kg
  • Conductor
    Solid OFC
