Mercury – Cat5e F/UTP Network Cable Grey 305m

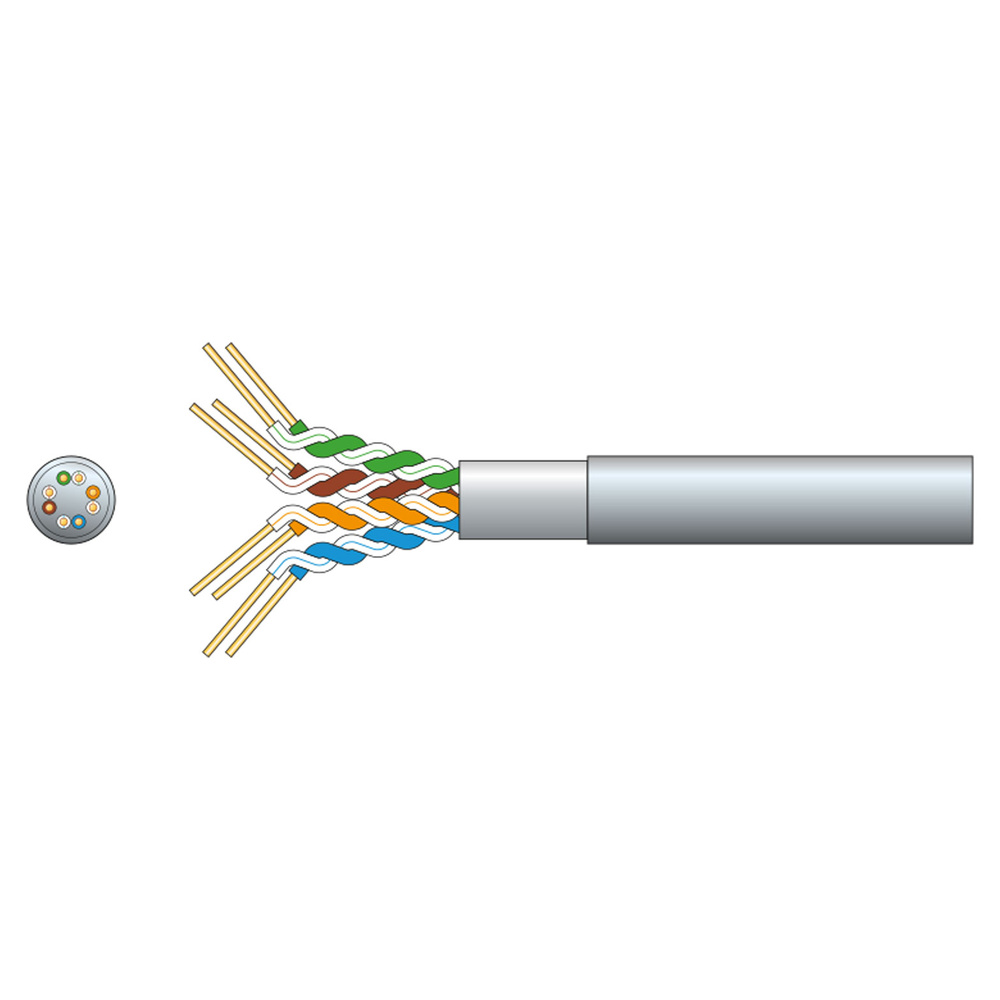

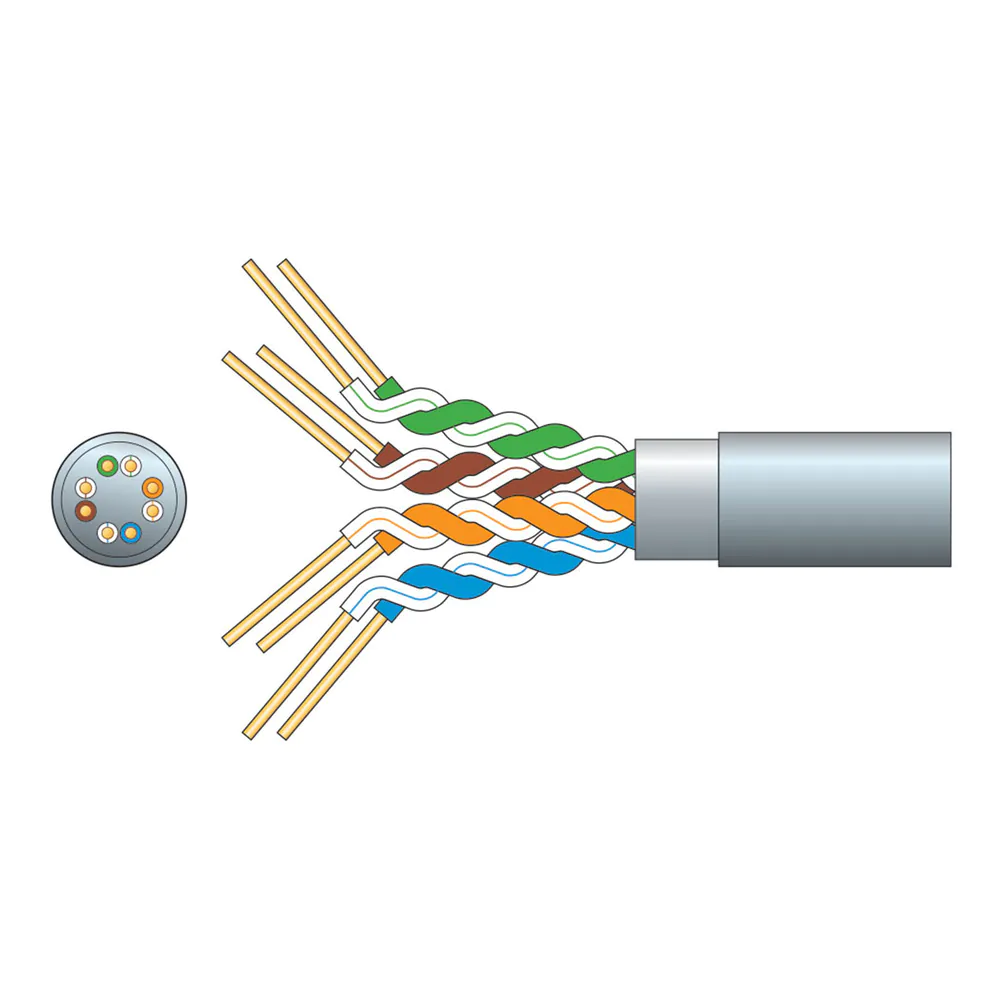

Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen.

£124.99

1 in stock

Cat5e oxygen free copper twisted pair data cable with overall aluminium foil screen. supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

AWG 24 oxygen free solid copper conductor
Supplied in an easy-pull dispensing box
Passes Cat5e fluke test 100m at 100MHz
Complies to TIA/EIA-568 Cat5e standard

  • Strands
    8 x 1/0.5mmØ ±2%
  • Conductor CSA
    8 x 0.196mm²
  • Insulation
    HDPE 0.225mm thickness
  • Screen material
    Mylar + Aluminium/Mylar + Drain wire
  • Sheath
    PVC 0.55mm thickness
  • Capacitance
    5.0nF/100m
  • DC resistance @ 20°C
    <9.5 ohms/100m
  • Impedance (1 to 100MHz)
    100±15 ohms
  • Return loss
    >20dB @100m
  • Attenuation
    <22dB @100m
  • NEXT
    >35.3dB
  • PSNEXT
    >32.3dB
  • ELFEXT
    >23.8dB
  • PSELFEXT
    >20.8dB
  • Phase delay
    <570ns
  • Colour
    Grey
  • Length
    305m
  • Weight
    11.8kg
  • Cable : diameter
    5.8mmØ
  • Conductor
    Solid OFC
