Mercury – 100U 75 Ohms Foam Filled Coaxial Cable – CCA Braid Black 100m

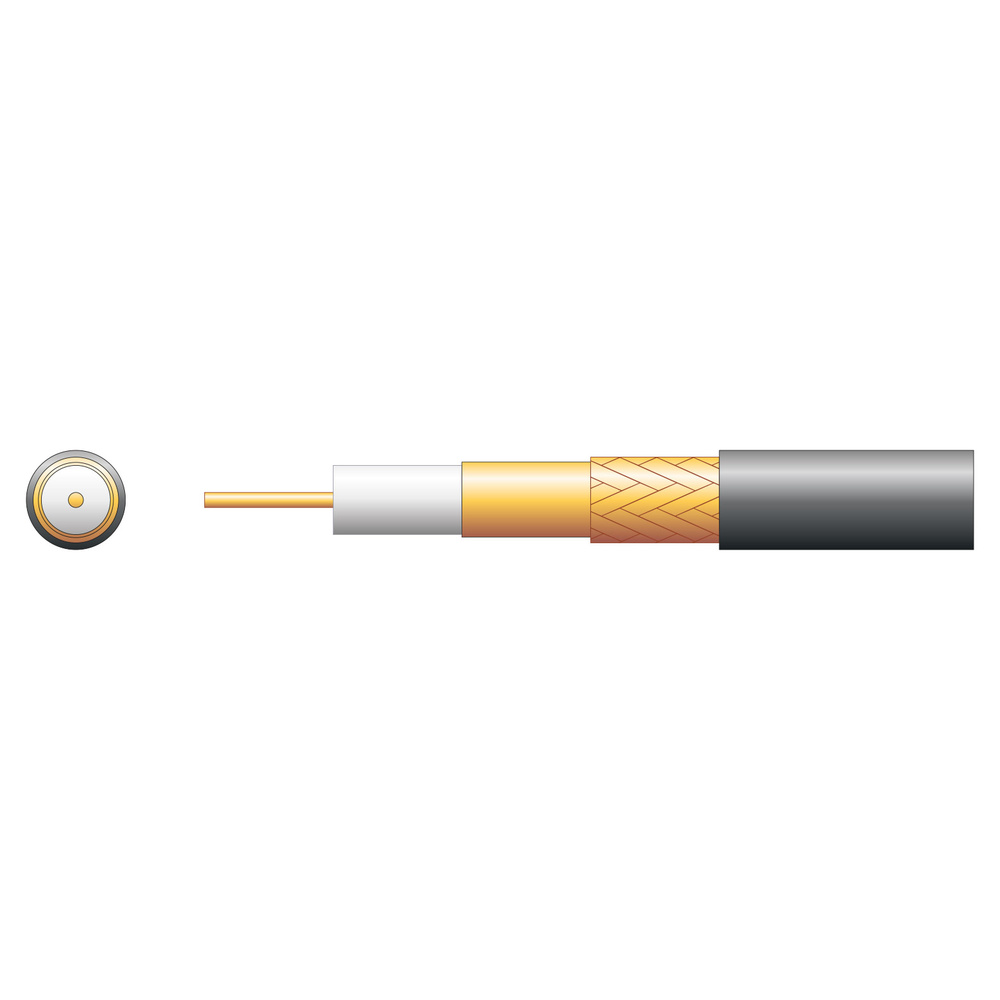

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath.

£58.59

1 in stock

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

Solid OFC conductor
Foam filled PE dielectric
Copper foil screen
CCA braid
Supplied in 100m or 250m reel with metric cut markers

Conductor diameter

1mmØ
CSA

0.79mm²
Dielectric

4.6mmØ foam PE
Screen

Copper foil
Braid

64 x 0.12mmØ
Cable : diameter

6.6mmØ
Impedance

75 Ohms
Capacitance

54pF/m
Velocity factor

83%
Return loss 5-400MHz

28dB min./100m
Return loss 450-1000MHz

24dB min./100m
Return loss 1000-2150MHz

18dB min./100m
Attenuation @ 5MHz

1.8dB max./100m
Attenuation @ 50MHz

4.7dB max./100m
Attenuation @ 100MHz

6.6dB max./100m
Attenuation @ 200MHz

9.7dB max./100m
Attenuation @ 400MHz

14.6dB max./100m
Attenuation @ 860MHz

19.6dB max./100m
Attenuation @ 1000MHz

21.6dB max./100m
Attenuation @ 1750MHz

29.1dB max./100m
Attenuation @ 2150MHz

32.7dB max./100m
Conductor material

Solid OFC
Braid material

CCA
