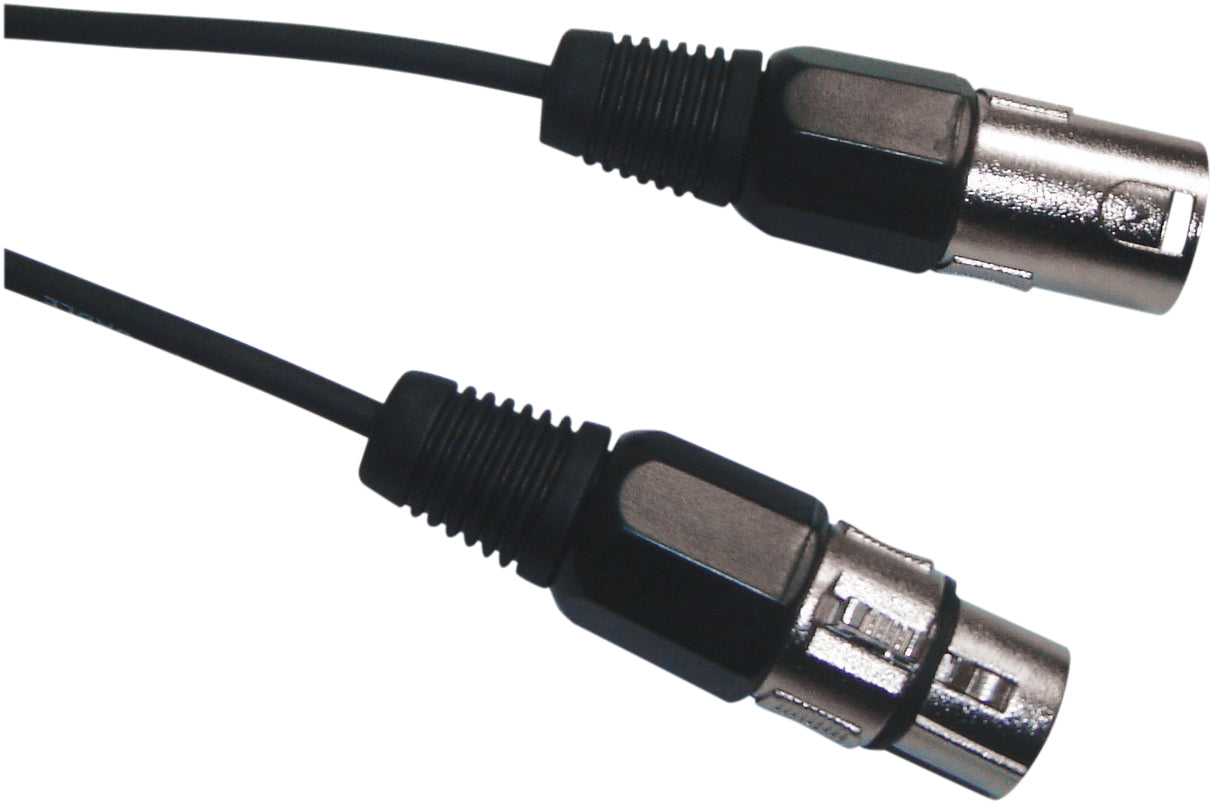

DMX Control Lead. 3 Pin XLR Line Plug to 3 Pin XLR Line Socket 2 Core and Drain Cable. used to send signals to DMX equipped units such as dimmer packs, scanners, lighting effects, smoke machines, lasers, etc. Pin 1 – Earth/Shield Pin 2 – Data Minus Pin 3 – Data Plus
