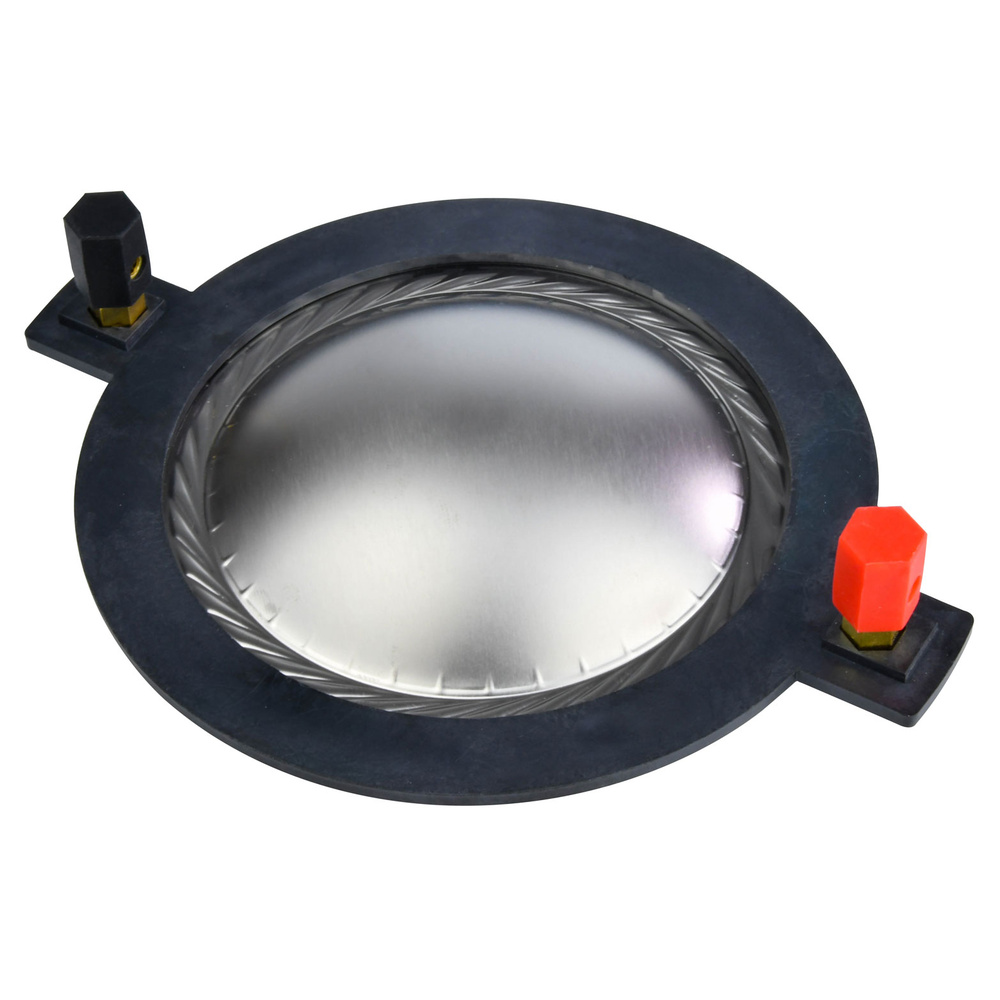

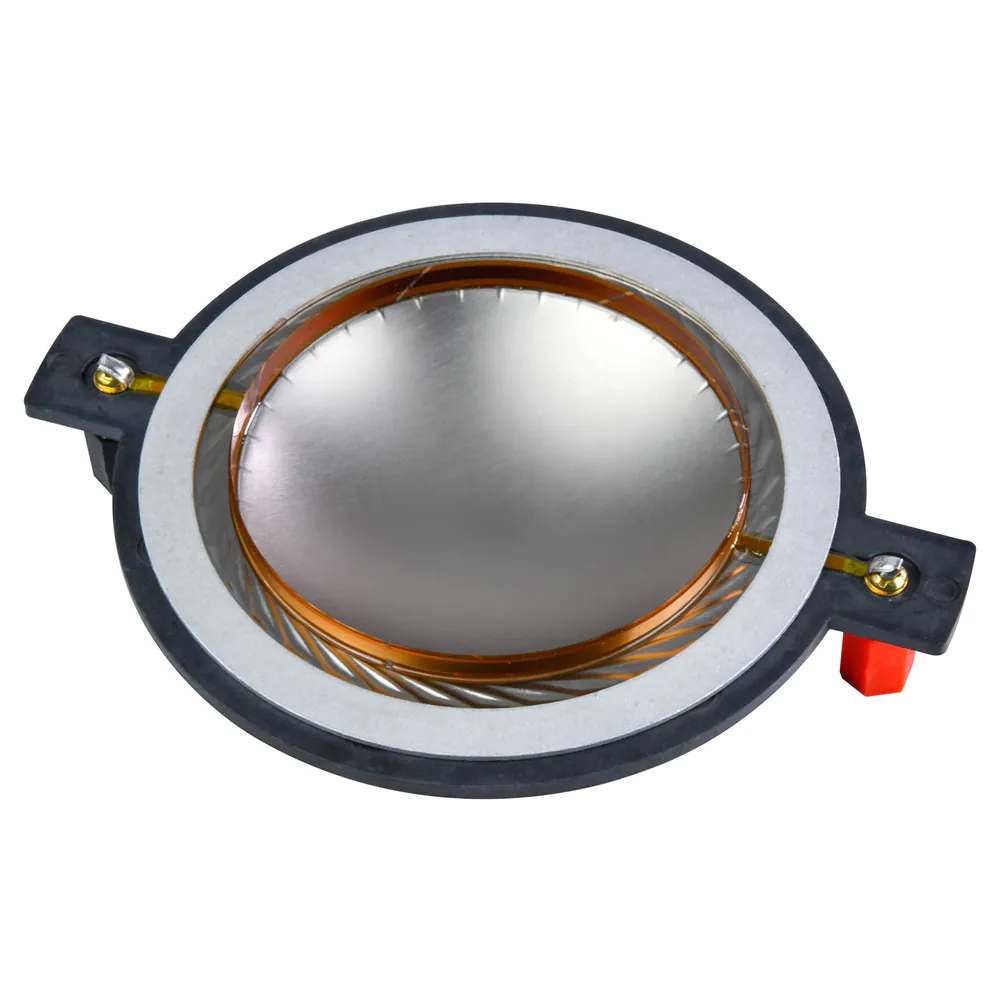

Citronic TDCORVA-1215 – High Frequency Driver Unit – CORVA Series (Diaphragm only)

High frequency compression unit for driving the horn flare of a high power PA cabinet.

£23.69

1 in stock

High frequency compression unit for driving the horn flare of a high power PA cabinet. The voice coil is mated to a 50mmØ Titanium diaphragm, handling up to 150Wrms of high frequency top produce the very high SPLs of upper frequencies needed in commercial sound reinforcement enclosures. A direct replacement for CORVA-12 and CORVA-15 active or passive PA cabinets.

Up to 150Wrms power handling
Accurate and efficient Titanium diaphragm

  • Impedance
    8 ohms
  • Power handling RMS
    150W
  • Power handling : max.
    300W
  • Frequency response
    800Hz - 20kHz
  • Sensitivity
    105dB/mW
  • Voice coil
    75mmØ (3") Kapton
  • Magnet
    Ceramic 1.75kg (62oz)
  • Throat
    50mmØ (2")
  • Dimensions
    125 x 225mmØ
  • Weight
    4.5kg
  • Diaphragm
    Titanium - 140 x 110 x 30mm, 40.3g
