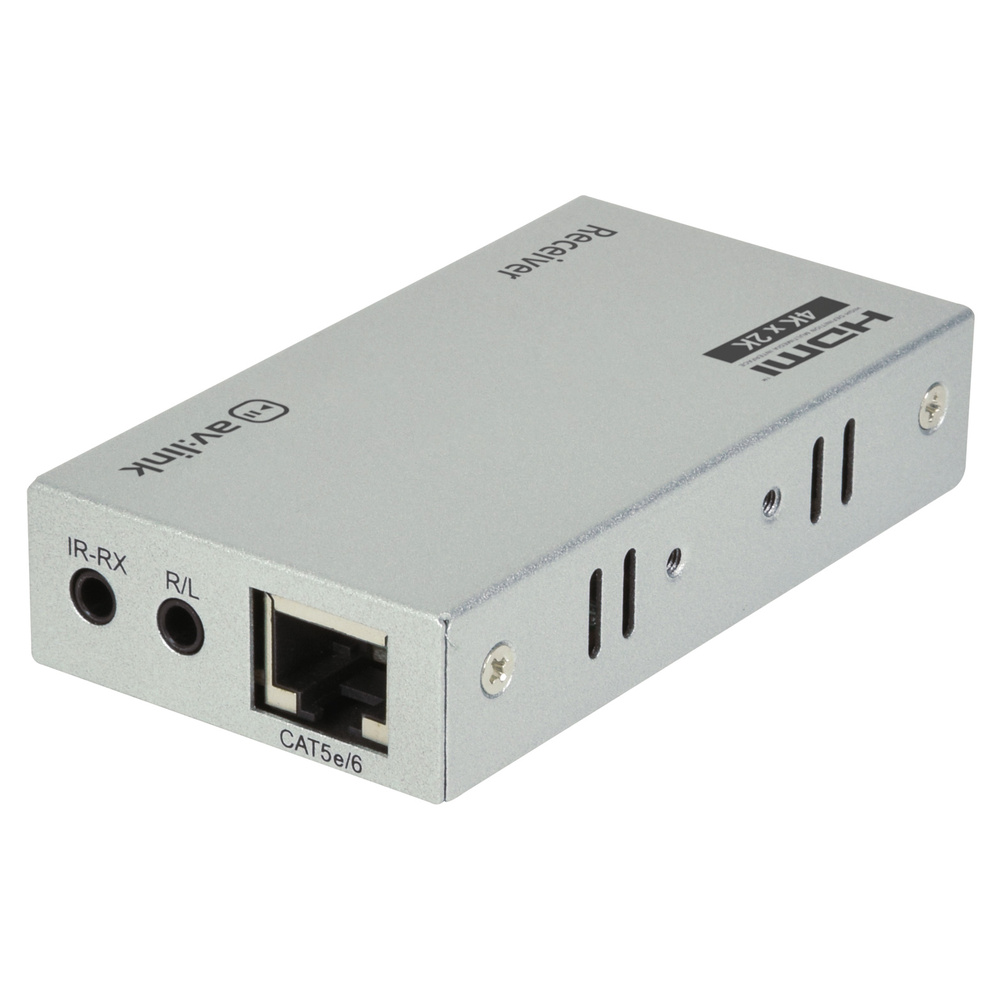

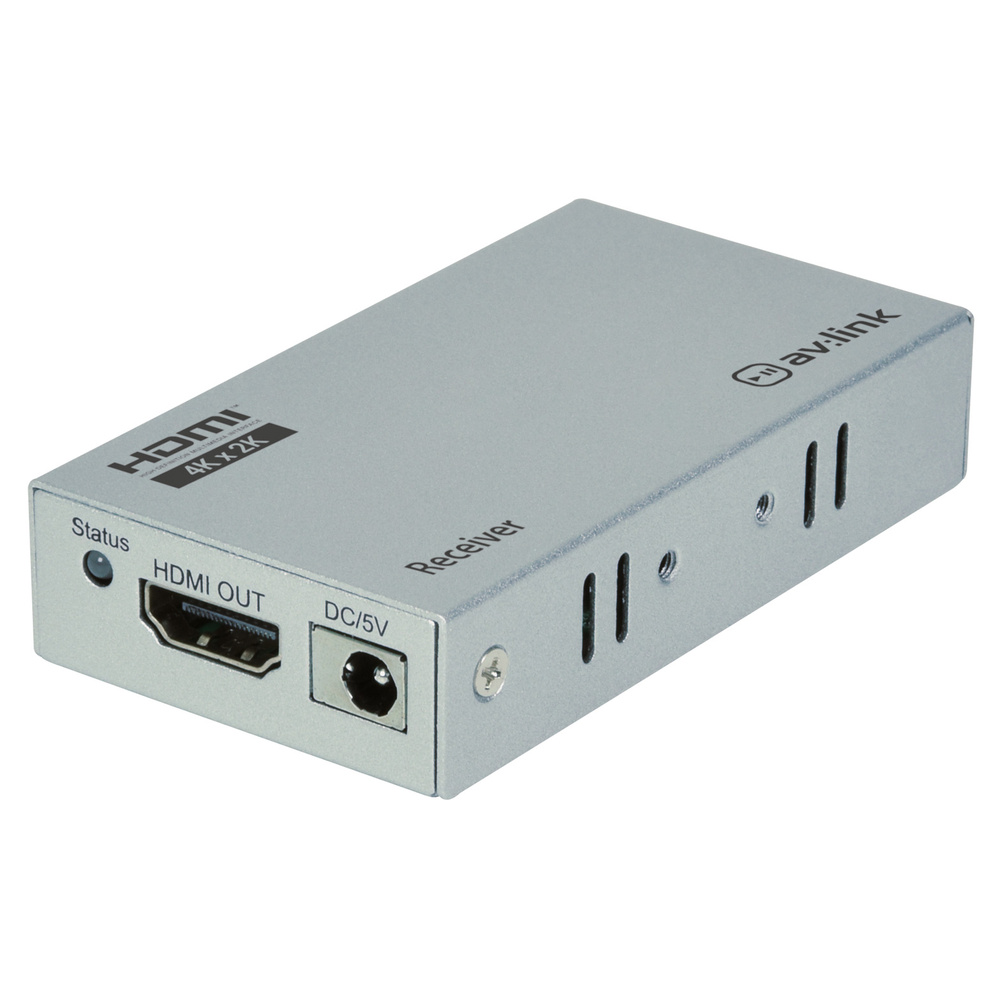

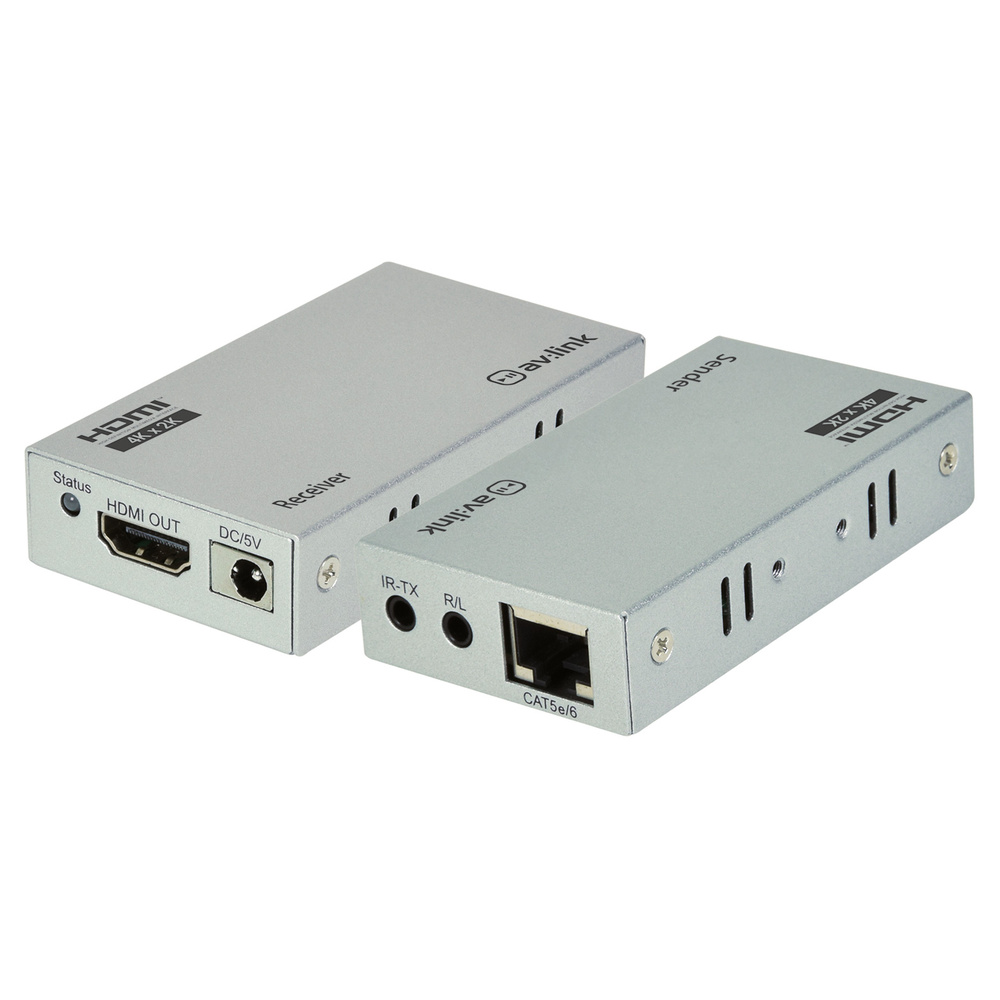

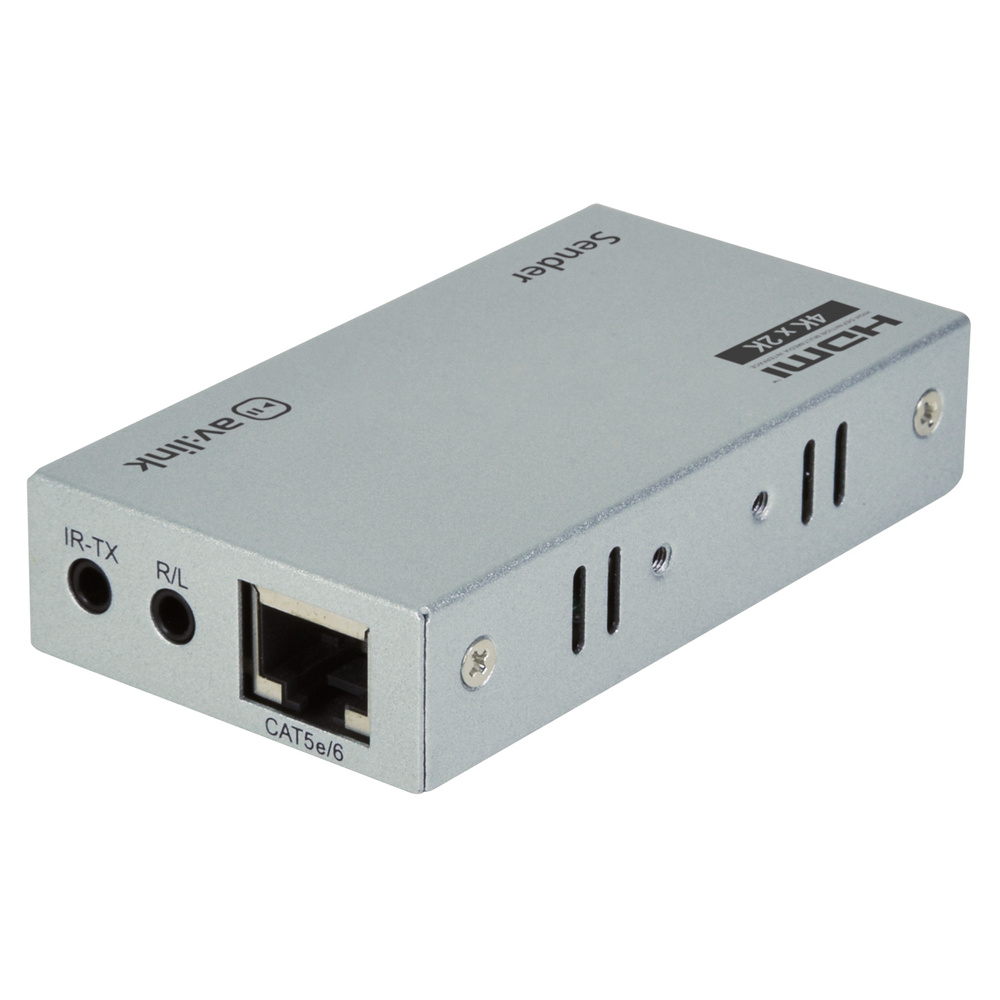

AV:Link HDNK2 – 100m Range 4K HDMI Extender Over Ethernet Kit

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable.

£57.49

97 in stock

An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs but without reducing your picture quality. The built in IR function enables simple control of transmission devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers using a 3.5mm audio cable (not supplied).

Easy transmission of 4K and FHD signals up to 100m using a single Ethernet cable
Simple plug and play connection and installation

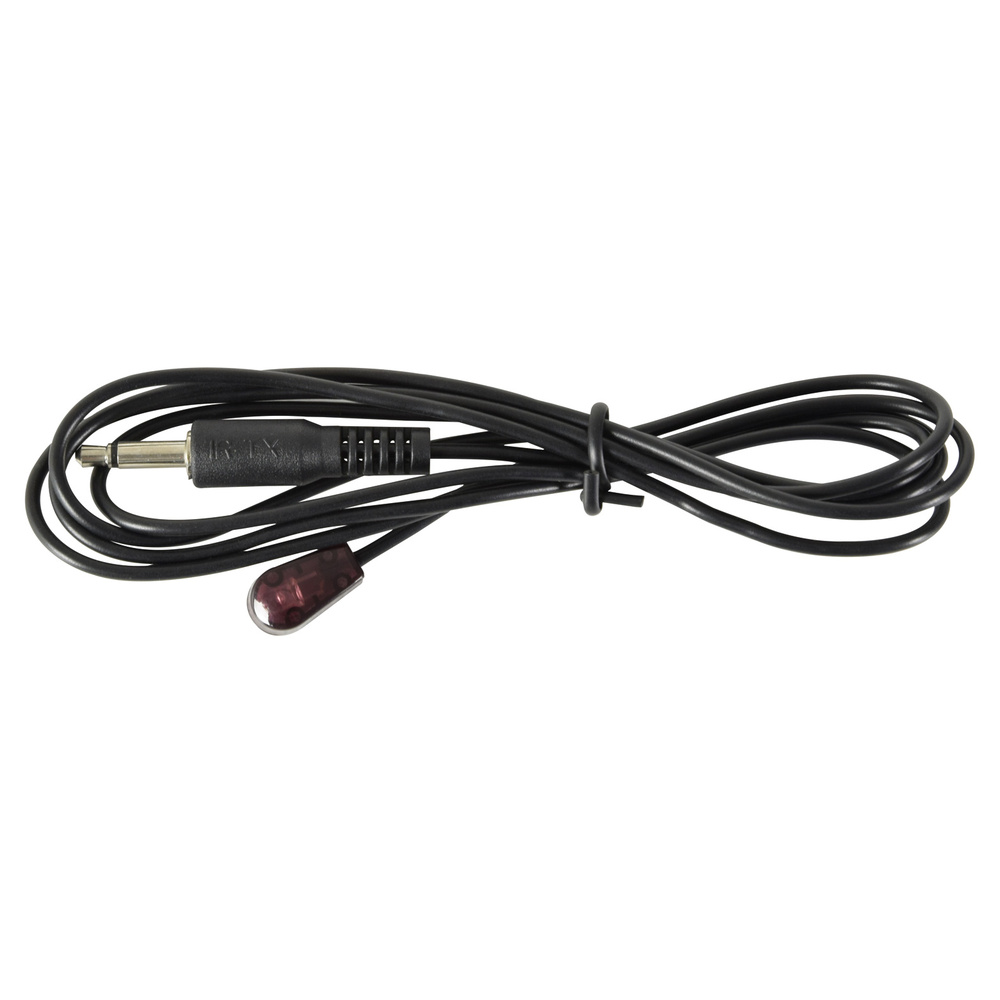

Built in IR function enables control of transmission devices remotely
Audio extraction function for connection to speakers and amplifiers
Gold plated HDMI connectors for optimum signal transfer
Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
Supplied with fixing brackets for rack mounting
Requires Cat5e/6 STP/FTP cable (not supplied)
HDCP2.2 Compliant

  • HDMI version
    1.4a
  • Max. range
    100m
  • Video format
    Up to 3840 x 2160 @ 30Hz
  • Audio format
    Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
  • Max. bandwidth
    340MHz
  • Max. baud rate
    3x3.4Gbps
  • Max. working current
    350mA (TX) and 200mA (RX)
  • Max. cable length
    HDMI (input & output) ≤15m AWG26 standard cable
  • Power supply
    5Vdc, 1000mA
  • Dimensions
    82x45x18mm (each unit)
  • Weight
    120g (each unit)
