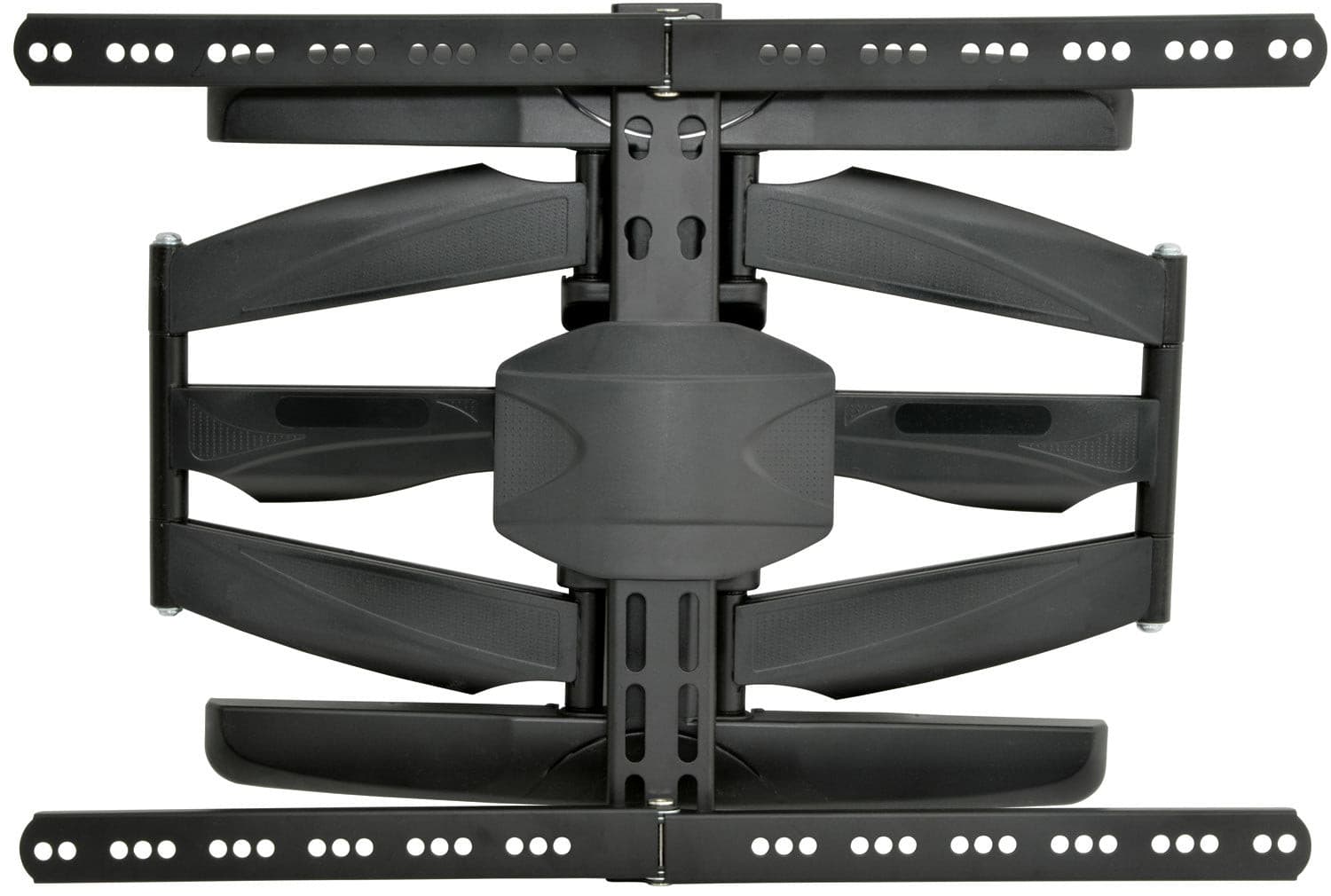

This full motion TV wall bracket has a special angle adjustable mount which will accommodate both flat and curved screens. Its suitable for screen sizes from 32″ to 65″ or with VESA mounting patterns up to a maximum of 600x400mm.

SPECIFICATIONS:

Suitable for 32″ to 65″ sized flat or curved TV screens

Compatible with VESA mounting patterns up to 600x400mm

-2° to 12° tilt mechanism

90° pan from wall plate

45° swivel from arm joint

Sturdy dual arm support

Integrated cable management system

Installation hardware included

Max. VESA: 600 x 400

Max. weight load: 45kg

Screen size: 32″ – 65″

Distance from wall: 74 – 514mm

Tilt range: -2° to 12°

Wall plate dimensions: 477 x 394mm

Bracket dimensions: 648 x 440mm

Weight: 7.35kg

TV fixing screws provided: 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm
