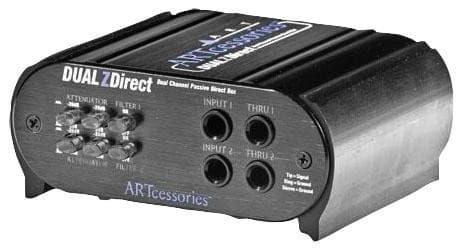

The DUALZDirect provides two independent high quality totally passive interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs through high performance audio isolation transformers. Each of the high impedance single-ended ¼” inputs is converted by a transformer into an isolated, balanced, low impedance signal output. The DUALZDirect’s audio transformers have an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALZDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

SPECIFICATIONS:

Fully passive, high performance transformer design

Converts 50kR inputs into 600R balanced outputs

Switchable low pass filter

Switchable phase invert

Switchable ground lift

Rugged extruded aluminium case

Input Connections: 2x 6.35mm (¼”) TRS unbalanced

Thru Connections: 2x 6.35mm (¼”) TRS

Output Connections: 2x XLR male

Frequency Response: 10Hz-50kHz, ±0.5dB

Channel Separation: >80dB (typical)

Input Attenuation: Switchable, (0, -20, -40dB)

Filter Type/Response: Switchable, low pass, -3dB @ 30kHz

THD: 0.01% typical @ 1kHz, +18dBu

Dimensions (WxHxD): 117x47x99mm

Weight: 400g
