In: MOVING HEADS

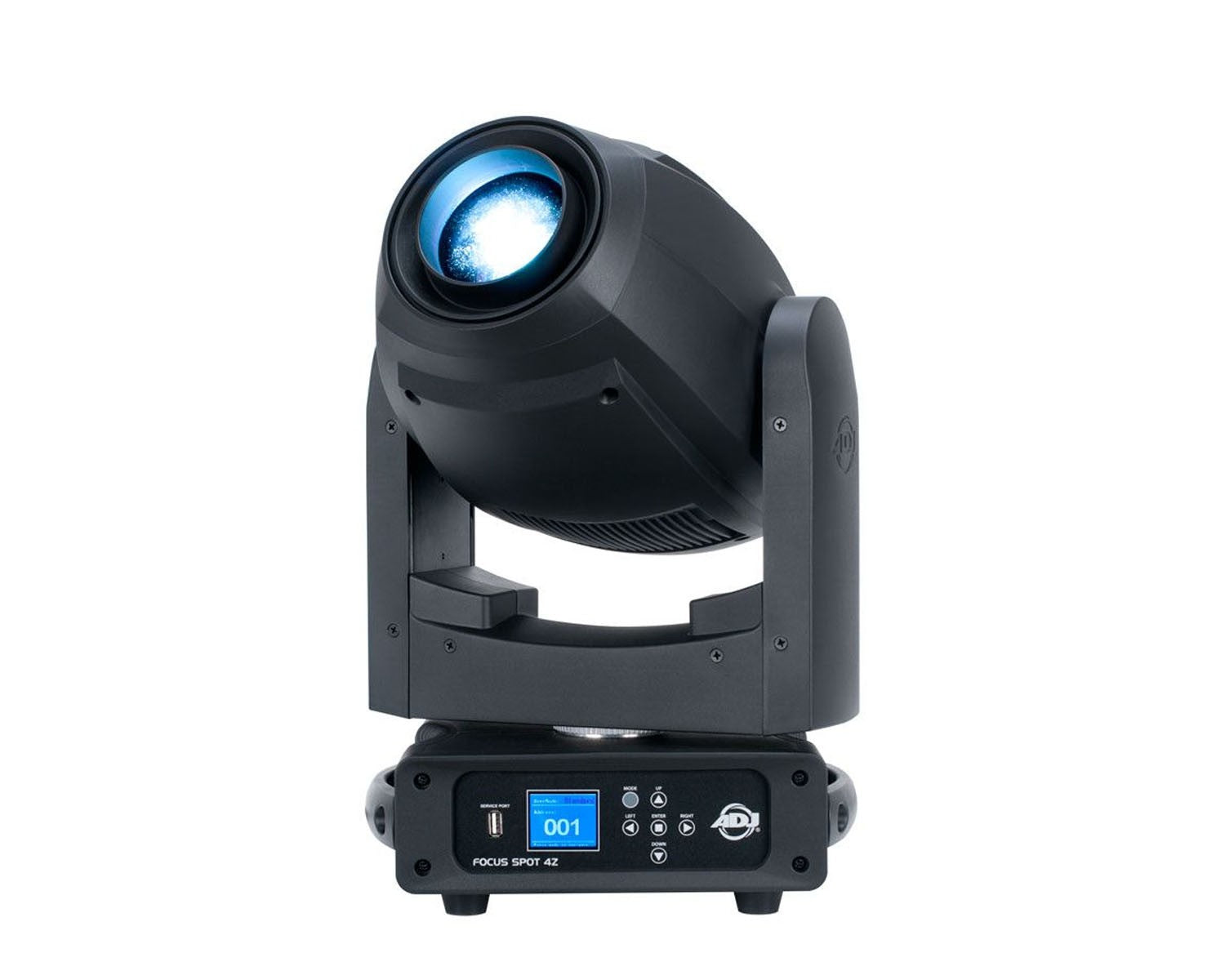

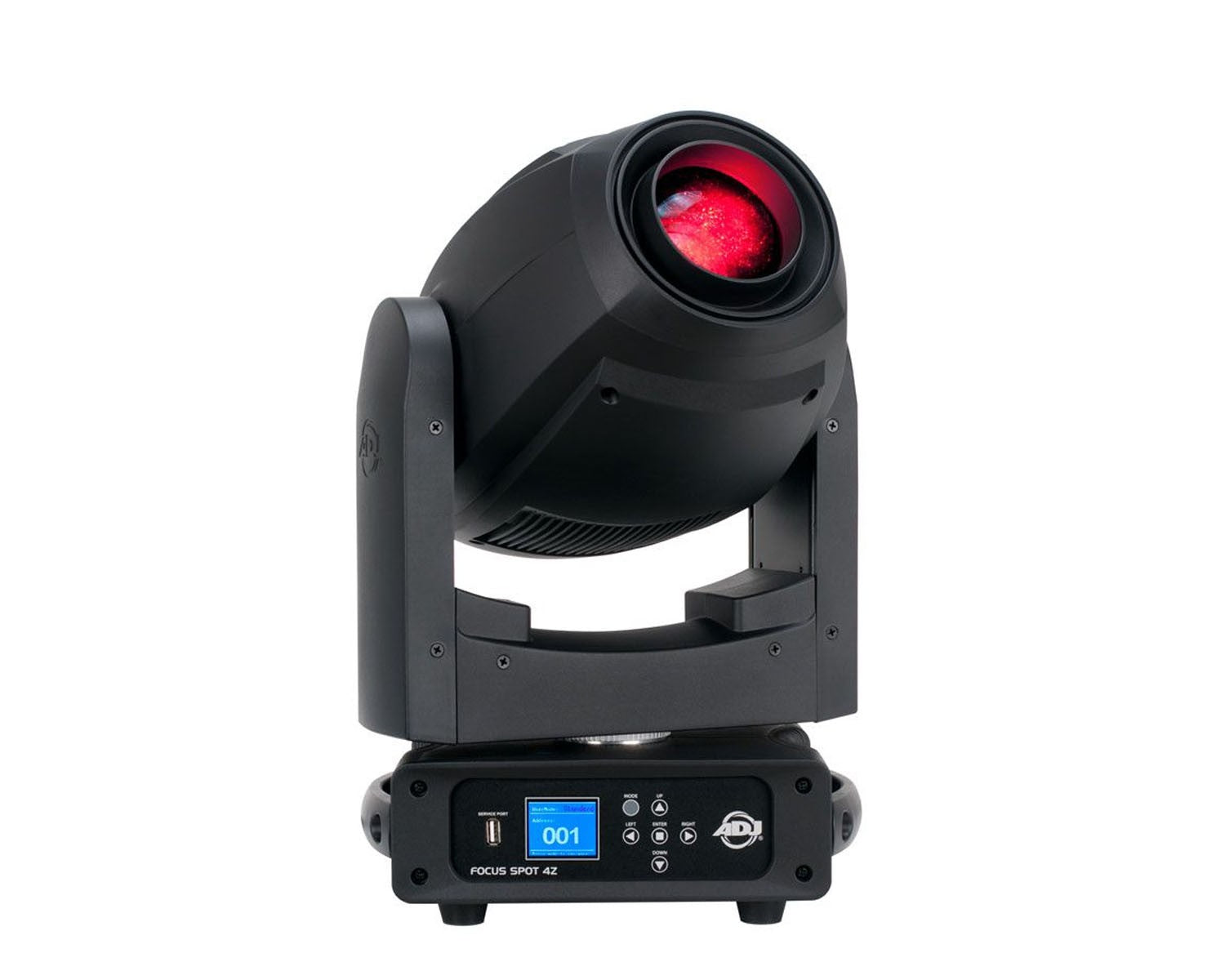

The Focus Spot 4Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS, 8 vibrant colors plus white, and 2 prism wheels (one 5-facet linear and one 6-facet circular).
£1,114.79
Out of stock
The Focus Spot 4Z has Locking Power In and out connectors to daisy chain the power, as well as Locking 3-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight, compact foot print
Source
Source: Cool White LED Engine
Individual LED wattage : 200W
Average lifetime: approximately 50,000 hrs
Optics
Motorised Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
Motorised Focus
2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular, prism overlay
Control
2 operational modes : Program Mode or DMX control
3 DMX Channel Modes: 16/18/22 Channels
RDM compatible (Remote Device management)
Internal Programs with built-In DMX Recorder
16bit dimming 0-100%
6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
Adjustable Gamma Brightness : 2.0 / 2.2 / 2.4 / 2.6 or 2.8
Adjustable LED Refresh Rate from 900Hz to 25kHz for flicker free operation
Various strobe effects
6-button Colour display
Battery inside, allowing to access the fixture Menu without power connection
16bit Pan: 540 & 630 degrees
16 bit Tilt: 270 degrees
3 Fan settings : Auto, High and Low Noise
Colours
1 colour wheel with 8 dichroic colours + white
Gobos
1 gobo wheel with 6 aluminium GOBOs + open
All gobos removable, rotatable and indexable
Gobo Shake Effect
Gobo size: 22,5mm (outer); 19mm (viewable); 0.5-2mm (thickness)
Construction
Plastic housing
2 cooling fans
Electrical
Multivoltage : 100-240V 50/60Hz
Power Draw : 256W

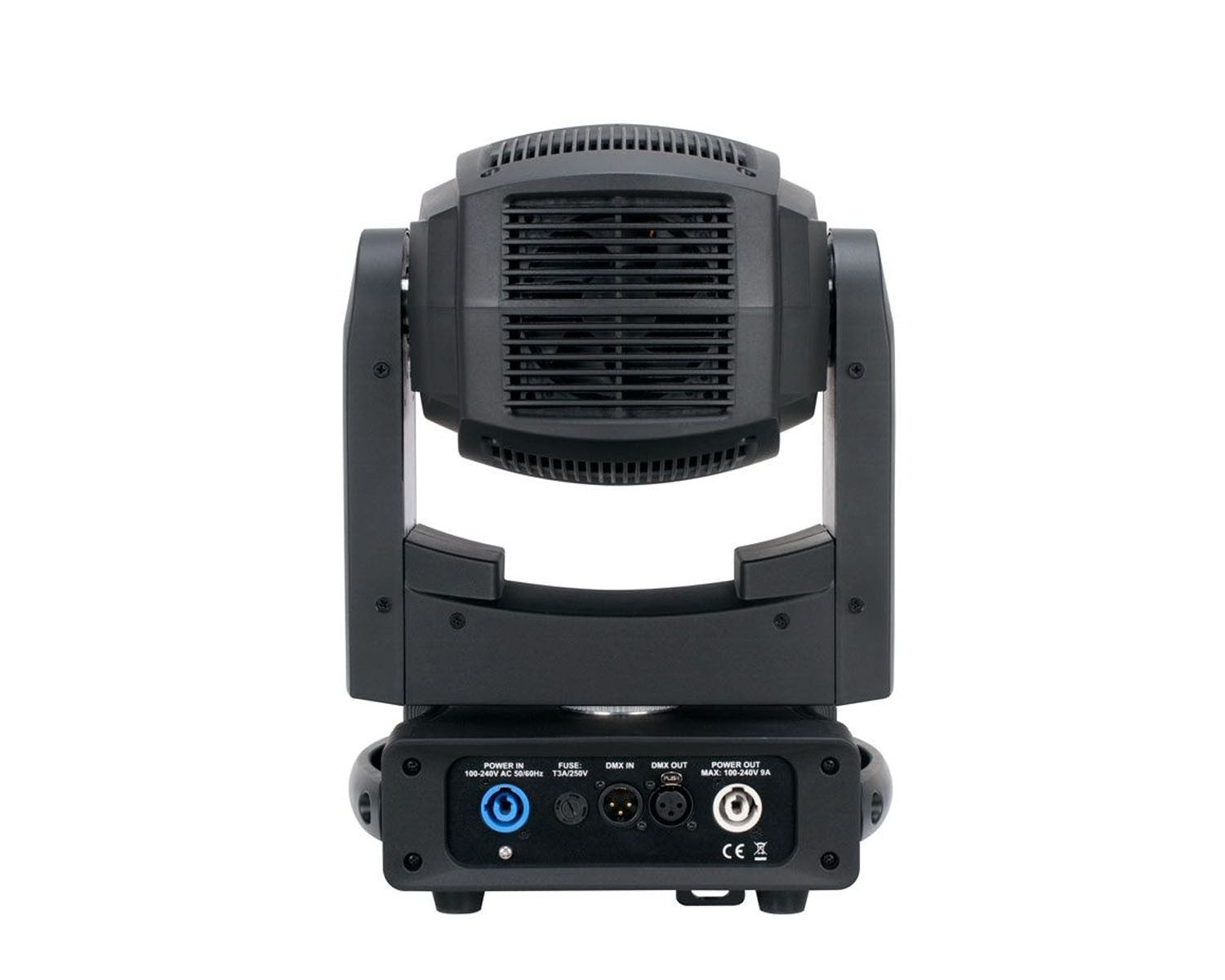

Connections
Locking 3-pin DMX In/Out
Locking Power In/Out (Daisy chain 4 units @ 120V; 10 units @ 240V)
USB firmware update port
Dimensions & Weight
Dimensions: 457 x 279 x 182mm
Weight: 10 kg.
